Development and sales of “Heat Stroke Prevention Tent” with dedicated air conditioner
~In addition to partial cooling, the temperature of the entire shelter is regulated to improve the environment~.
2019.06.27
June 27, 2019
Taiyo Kogyo Corporation
(Tokyo headquarters: Setagaya-ku, Tokyo; Osaka headquarters: Yodogawa-ku, Osaka; President: Hidefumi Araki), a manufacturer of large membrane structures (tent structures) and other products, has developed the COOL MQ, an emergency air tent that stands up in about one minute and is equipped with a fly sheet for sun protection. The company has developed the COOL MQ , an emergency air tent that stands up in about one minute and is equipped with a fly sheet to protect against heat stroke.
The COOL MQ heat stroke countermeasure tent, which went on sale in June, is a new product lineup that includes the McQuick Shelter emergency air tent with a heat-shielding sunshade flysheet and a dedicated air conditioner as an optional accessory, providing a comfortable space by reducing indoor temperature and humidity. The new product protects the health of people who have spent time in harsh environments, including heat stroke caused by extreme heat, and enables speedy operation with its easy installation and removal.
Among them, the newly introduced dedicated air conditioner is a unit type in which the indoor and outdoor units are integrated, and has a high cooling capacity of 3.6 kW. It is easy to install and move to the shelter as it is equipped with casters, and it demonstrates excellent cooling performance in synergy with the sunshade fly sheet.
In a demonstration test conducted under clear skies in mid-summer when a dedicated air conditioner was installed, the measured temperature in the center of the tent was maintained at minus 5°C compared to the outside temperature. The “McQuick” air conditioner is also designed to be used with the “McQuick” air conditioner.
The main unit, “McQuick Shelter,” is an emergency air tent that has been delivered to fire departments and Self-Defense Forces nationwide since its launch in 2006, and has earned a high level of trust. The tent has played an important role on the front lines of disaster sites, taking advantage of its quick-response capability to be up and running in about one minute with the use of an electric pump. Recognized for its high performance, the company has expanded product functions to meet diversifying needs, such as the “negative pressure type for medical use” (launched in 2007) developed as a countermeasure against a new strain of influenza, bringing the total number of units sold to 1,500, including those sold overseas.
The development of the “COOL MQ,” which is now available for sale, began in September last year, following the introduction of the air-conditioned “McQuick Shelter” for restoration work under the blazing sun in the aftermath of the torrential rains that hit western Japan in July last year, and its contribution to maintaining workers’ health.
The COOL MQ is priced at 1,110,000 yen*2 for the 3m x 2m size (model CMQ322), and other types such as 3m x 4m and 4m x 4m types are also available.
Through the development and sales of COOL MQ, Taiyo Kogyo hopes to contribute to the reduction of heat stroke, which has become a social issue.
*1: The CMQ322 model has two air beams.
*2: Prices do not include tax. The price of the dedicated air conditioner will be presented to the customer by the sales department according to the delivery conditions.

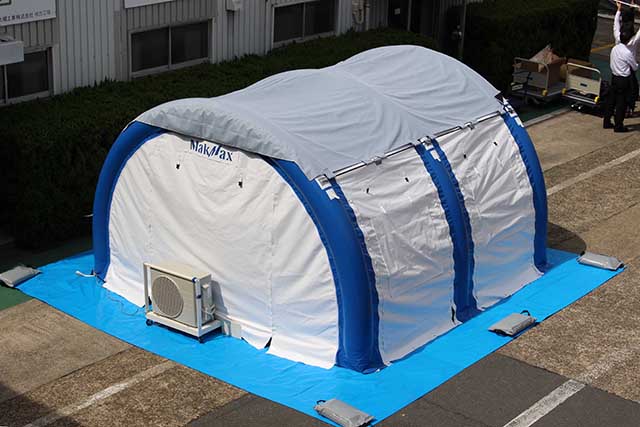

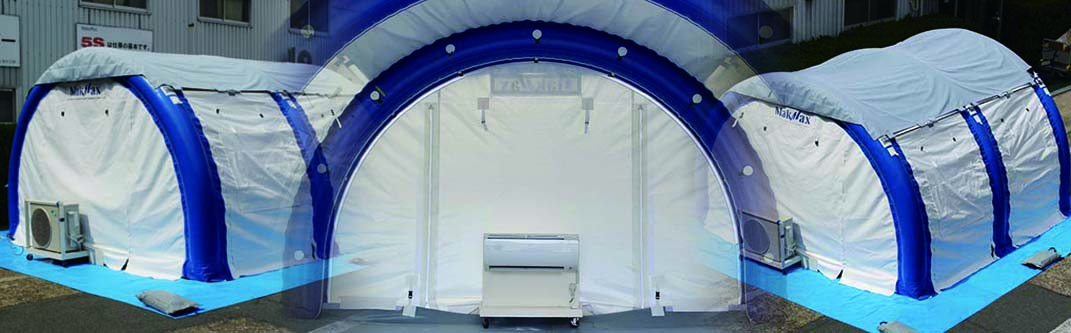

COOL MQ Overview
About COOL MQ
In addition, the optional “special air conditioner” not only makes the area around the air conditioner vent cool and comfortable like a conventional spot cooler, but also maintains the temperature inside the shelter at minus 5 degrees Celsius at the center of the interior in mid-summer.
◎Fitted with a sunshade flysheet to mitigate the sun’s rays from the outdoors. The heat shielding property increases and suppresses the temperature rise inside the shelter.

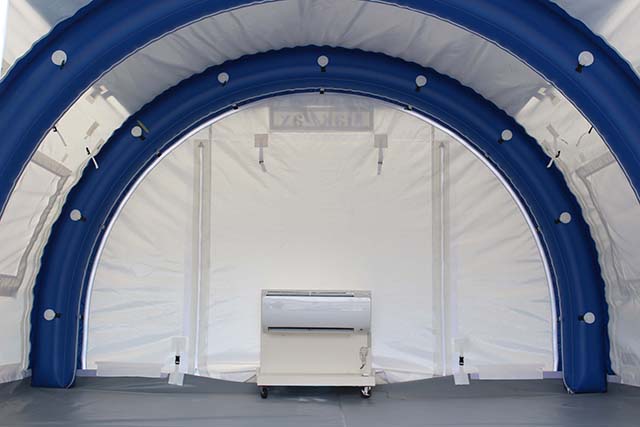

◎The dedicated air conditioner is integrated with the outdoor unit, and a dividing board is used to install only the outdoor unit outside the shelter. The shelter is equipped with casters so that it can be moved by a single adult, making it easy to set up and take down.
◎The main body is made of “McQuick Shelter”. It combines instant responsiveness with the ability to be up and running in about one minute using an electric pump, and has earned a high level of trust as an emergency air tent.
About Pricing
COOL MQ” type, size, and price
| Type Name | Size W x L x H | Main unit weight | Storage size W x L x H | Price (excluding tax) |
| CMQ-322-A | 3m x 2m x 2.0m | Approx. 35kg | 0.7m x 0.7m x 0.35m
|
1,110,000 yen |
| CMQ-342-A | 3m x 4m x 2.0m | Approx. 40kg | 08m x 0.8m x 0.35m | 1,420,000 yen |
| CMQ-442-A | 4m x 4m x 2.5m | Approx. 55kg | 0.8m x 0.8m x 0. 5m | 1,475,000 yen |
*The price of “dedicated air conditioners” will be quoted by our sales staff based on delivery conditions, etc.

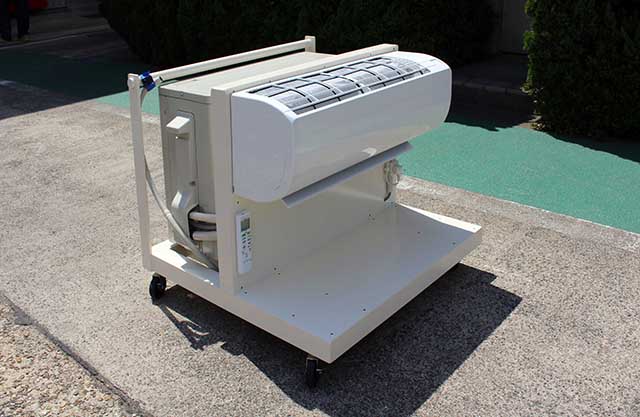

Specialized air conditioner specifications
Specialized air conditioner specifications
Size: 800 mm x 835 mm x 752 mm (W x L x H)
Weight: approx. 50Kg Cooling capacity: 3.6kW Power consumption: 1160w
Operating current: 13.0 A (max. 16.6 A) Power supply: single-phase 100 V
reference photograph

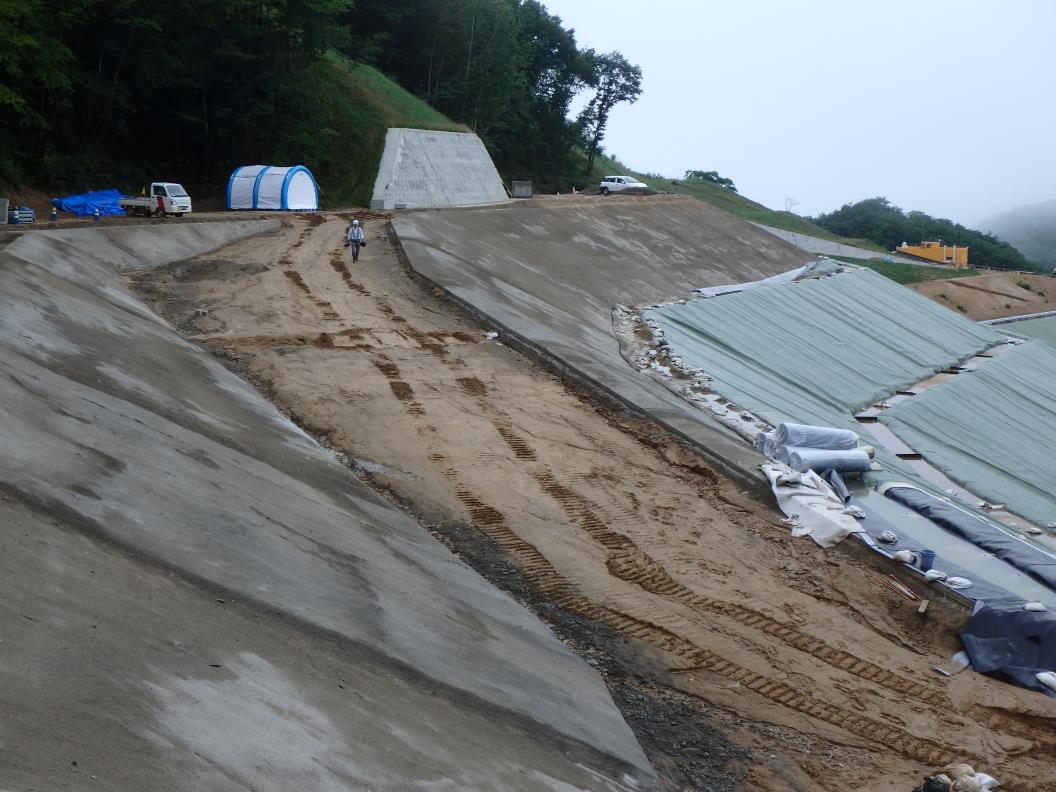

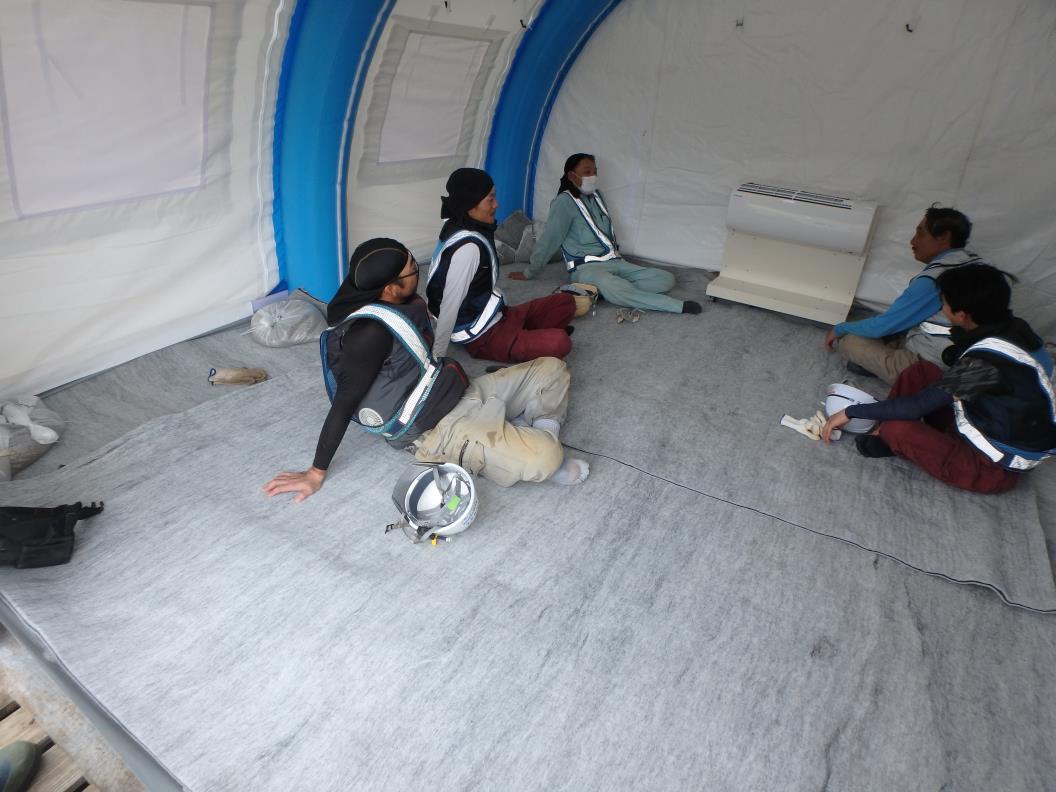

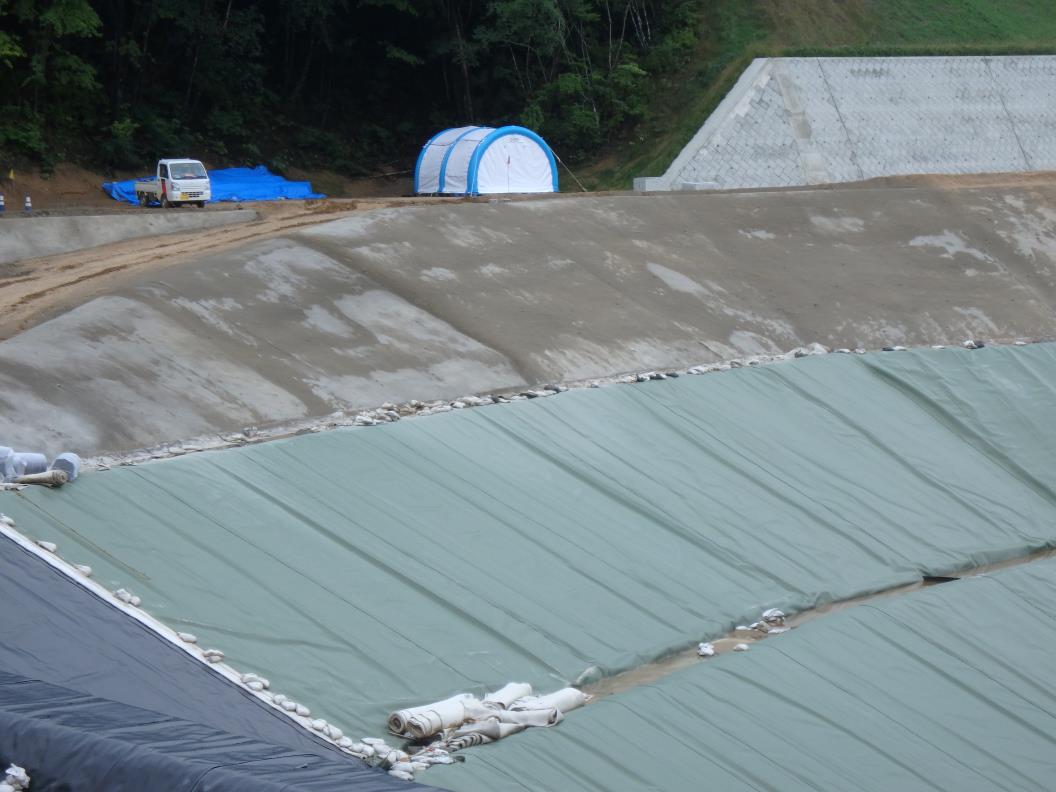

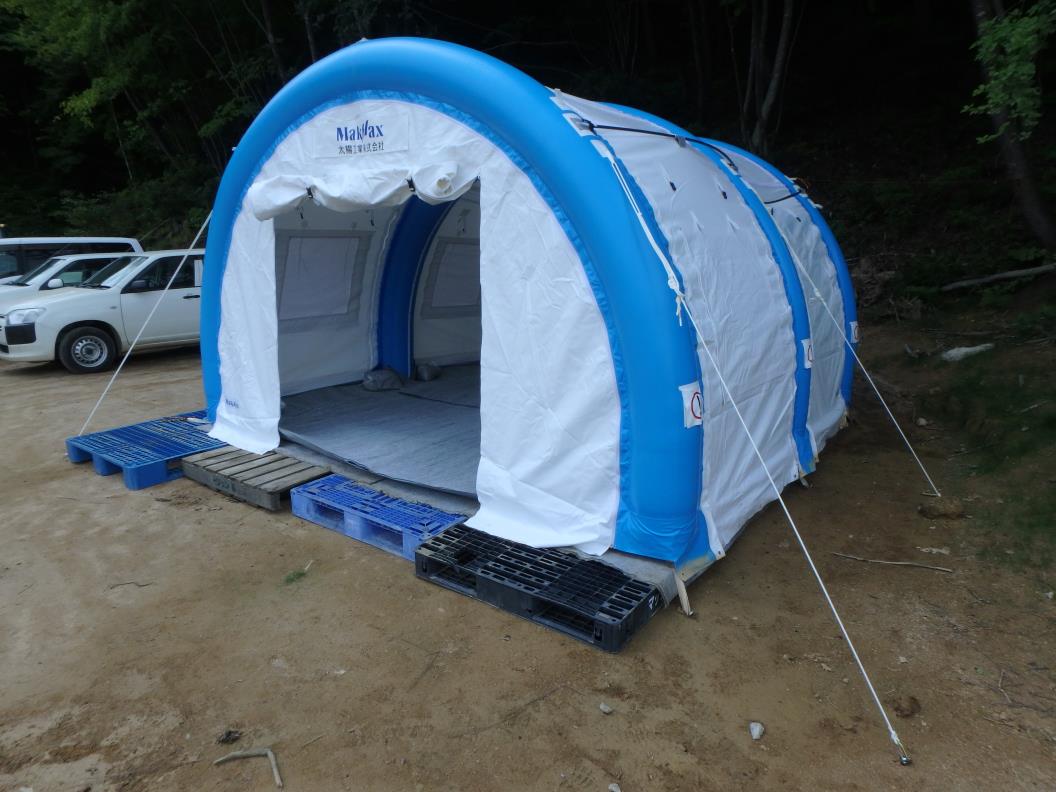

Examples of on-site use
Client : Clean Tech Co.
Facility name: Iizaka Clean Site
Prime contractor: Kumagai-gumi and Suzuyo Construction Joint Venture
Construction work: Construction of the final disposal site, Section II
Products : Gundel Sheet HDCG, Sensor DDS, etc.
