"MAX BAG(MXB-3 type)"
-Large weather-resistant sandbag-
Suitable for a wide range of applications such as disaster recovery, long-term temporary installation, and disaster stockpiling.
Large sandbags for quick and easy installation.
The weather-resistant large sandbag MAX BAG (MXB-3 type) demonstrates durability against ultraviolet deterioration and can be moved and diverted even after being installed for a long period of time in disaster restoration and temporary construction work requiring urgent restoration of rivers, roads, etc.
MAX BAG (MXB-3 type) conforms to the Design and Construction Manual for the “Weatherproof Large-Sized Soilbag Stacking Method” (Civil Engineering Research Center, Inc. (Soil Resistance Certificate No. 1903, Civil Engineering Research Center)
*For sale only in the Japanese market
Related Achievements
Product & Service
Features
The performance of MXB-3 has been certified by the Public Works Research Center.
Stacking, moving and reinstalling
They are economical because they are stackable and can be moved or reinstalled for a given period of time.
Allowable limit of load
Maximum filling mass is 2,000 kg
Workability
No special specialized or skilled workers are required for construction.

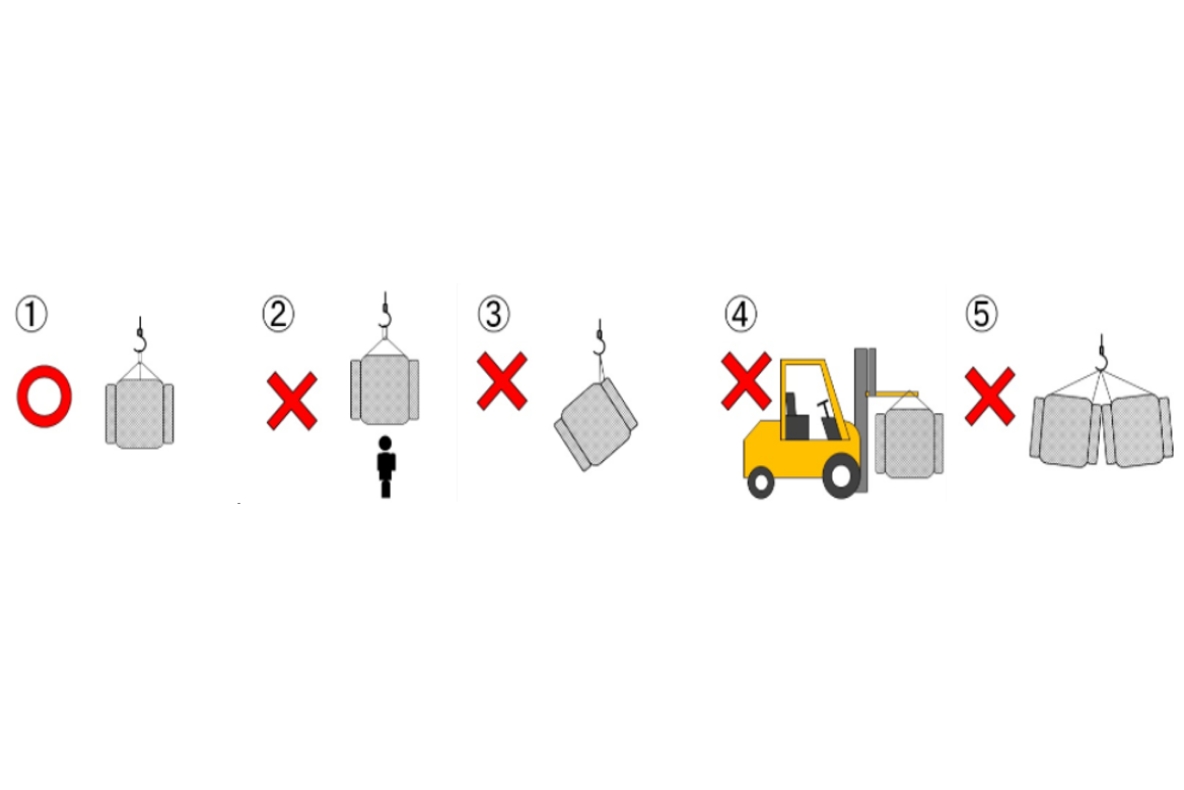

Handling Precautions
(1) Make sure that the load is evenly applied to the suspension section.
(2) Do not go directly under the lifted bag.
(3) When lifting, avoid one-sided lifting.
Do not hang directly with fork tines.
Do not hang both at the same time.
MXB-3 Specified Value
| item | Standards and Dimensions |
|---|---|
| Dimensions of main unit | Φ1100×H1100 |
| Max. filling mass | 2,000kg |
| Capacity | 1. 0m3 |
| Suspension belt strength | 30kN or more |
| Material properties | Kurihara polypropylene |
| Number of packages | 10 sheets/package |
MXB-3 Specified Value
Flexible container bag MAX BAG (MXB type) is a beige type that is less costly than MXB-3 as a short-term temporary solution for disaster recovery and temporary construction work
Suspended belt strength retention rate of 80% or more after accelerated UV exposure (200h) *Equivalent to approx. 7 months (not a guaranteed value)
| item | Standards and Dimensions |
|---|---|
| Dimensions of main unit | Φ1000 x H1100 |
| Max. filling mass | 1,000kg |
| Capacity | 1. 0m3 |
| Suspension belt strength | 14kN or more |
| Material properties | polypropylene |
| Number of packages | 10 sheets/package |
use
- Soft ground surface treatment (roads, residential land development, reclamation work, temporary roads)
- Soil layer separation (filter material)

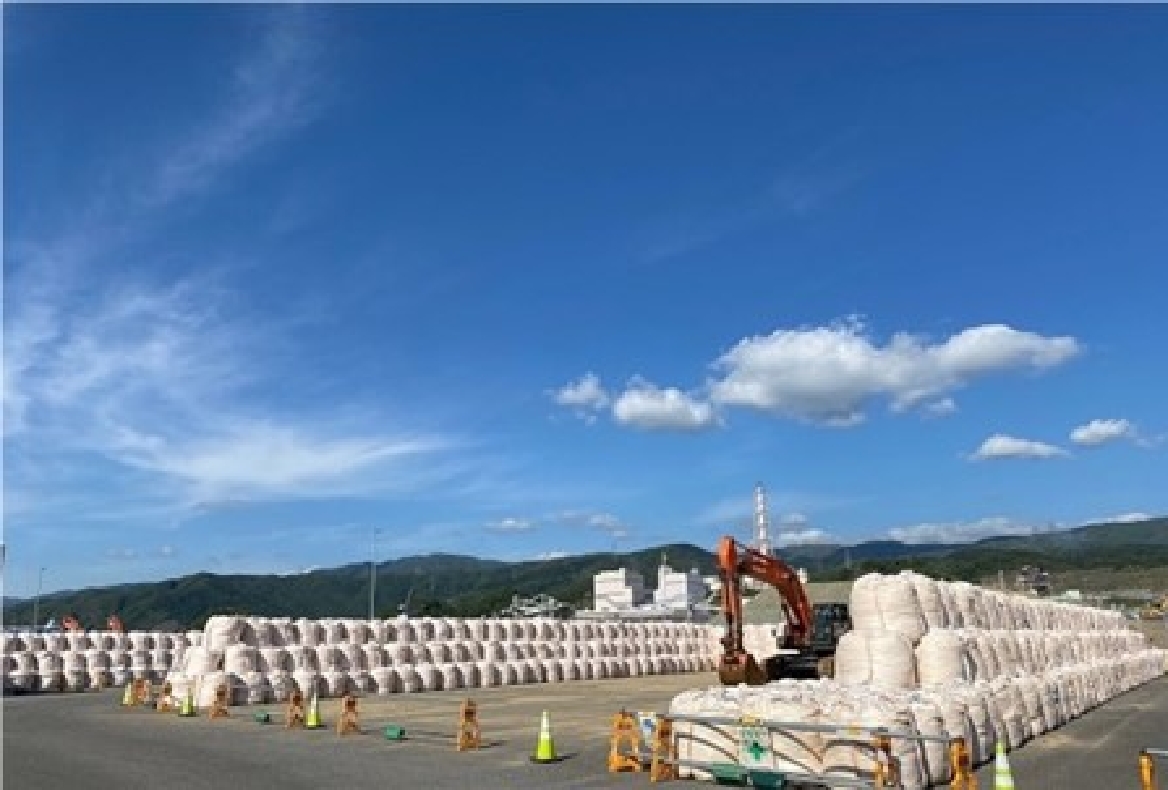

- Restoration work for rivers, roads, beaches, landslides, etc. when disasters occur
- Earth embankment, raised embankment, and large earthen embankment closure method at the time of embankment failure
- Construction road
- Erosion-control embankment
- For Disaster Stockpile
