"MAX GREEN TURF"
-Polymer-based weed prevention sheet-
Water and weed prevention sheets that can simultaneously stabilize slopes and enhance landscaping on urban rail and road slopes.
A sheet that combines an impervious sheet and artificial turf that can be landscape-friendly while maintaining waterproofing properties for slope stability.
This is a product that integrates a water barrier sheet and artificial turf into a single structure by laminating nylon fiber artificial turf on the surface of a three-layered waterproof layer consisting of a weed prevention layer of polyester woven fabric sandwiched between highly durable sheets.
*For sale only in the Japanese market.
Related Projects
Product & Service
Features
High water resistance
On embankment and cut slope slopes, water infiltration caused by rainfall can destabilize the slope surface.
High landscape quality
It is possible to consider the surrounding landscape. Even in environments where natural light does not reach, such as under elevated railway tracks, it blends in with the surroundings.
High weed control
Excellent weed control facilitates maintenance and management of slopes.
High earthquake resistance
The product is lightweight, so there is no risk of surface slippage.
Main components and installation procedures

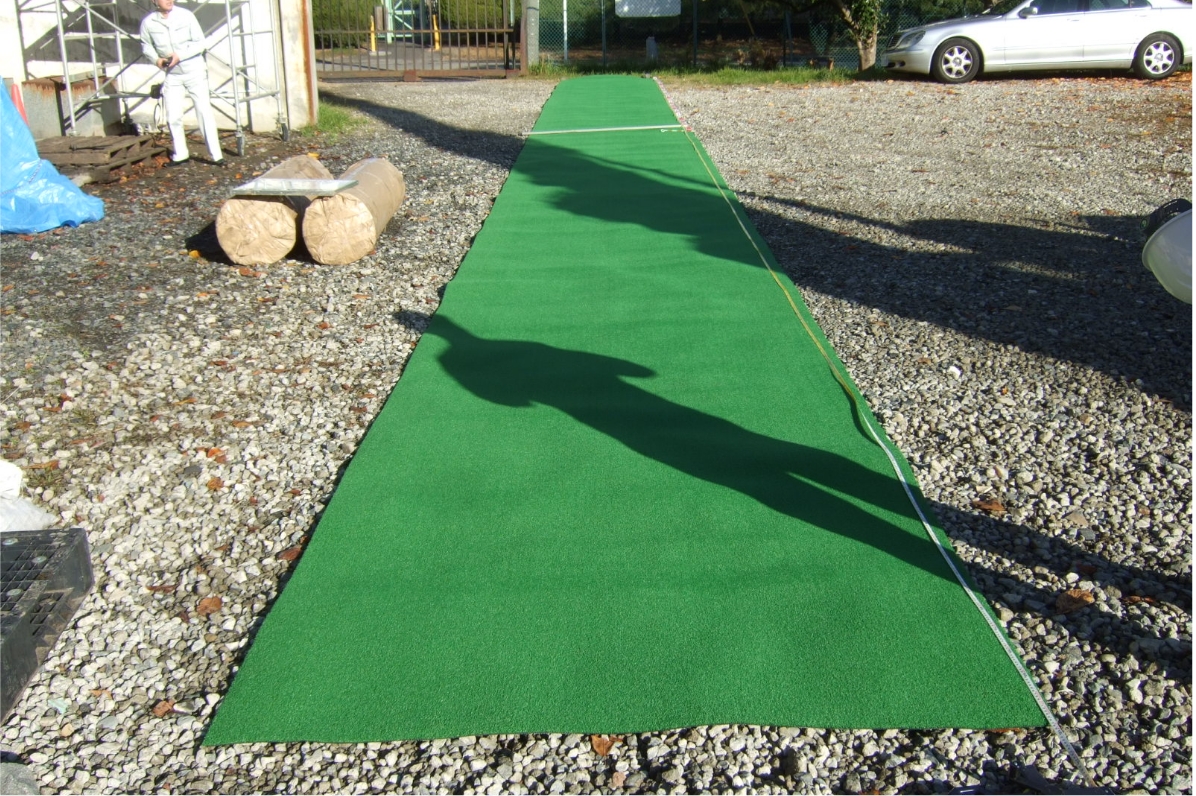

Max Green Turf
Shape and Dimensions
1.7m(W)×20.0m(L)×7.4?(t)
Standard dimensions
| item | Specifications and Properties |
|---|---|
| Range | 1,7m |
| Length | 20.0m (standard) |
| Thickness | Approx. 7.4mm (including 6mm pile length) |
| Weight | Approx. 2. 0kg/m2 (Approx. 70kg/standard length 20.0m) |
| Tensile strength (vertical) | 390N/5cm or more |
| Tensile Strength (Horizontal) | 245N/5cm or more |
| Tensile elongation (vertical) | Approx. 35 |
| Tensile elongation (horizontal) | Approx. 40 |
| Light-shielding property | 100 |
| Permeability | impermeable |
| Flame resistance | yes |
| Durability | More than 10 years |

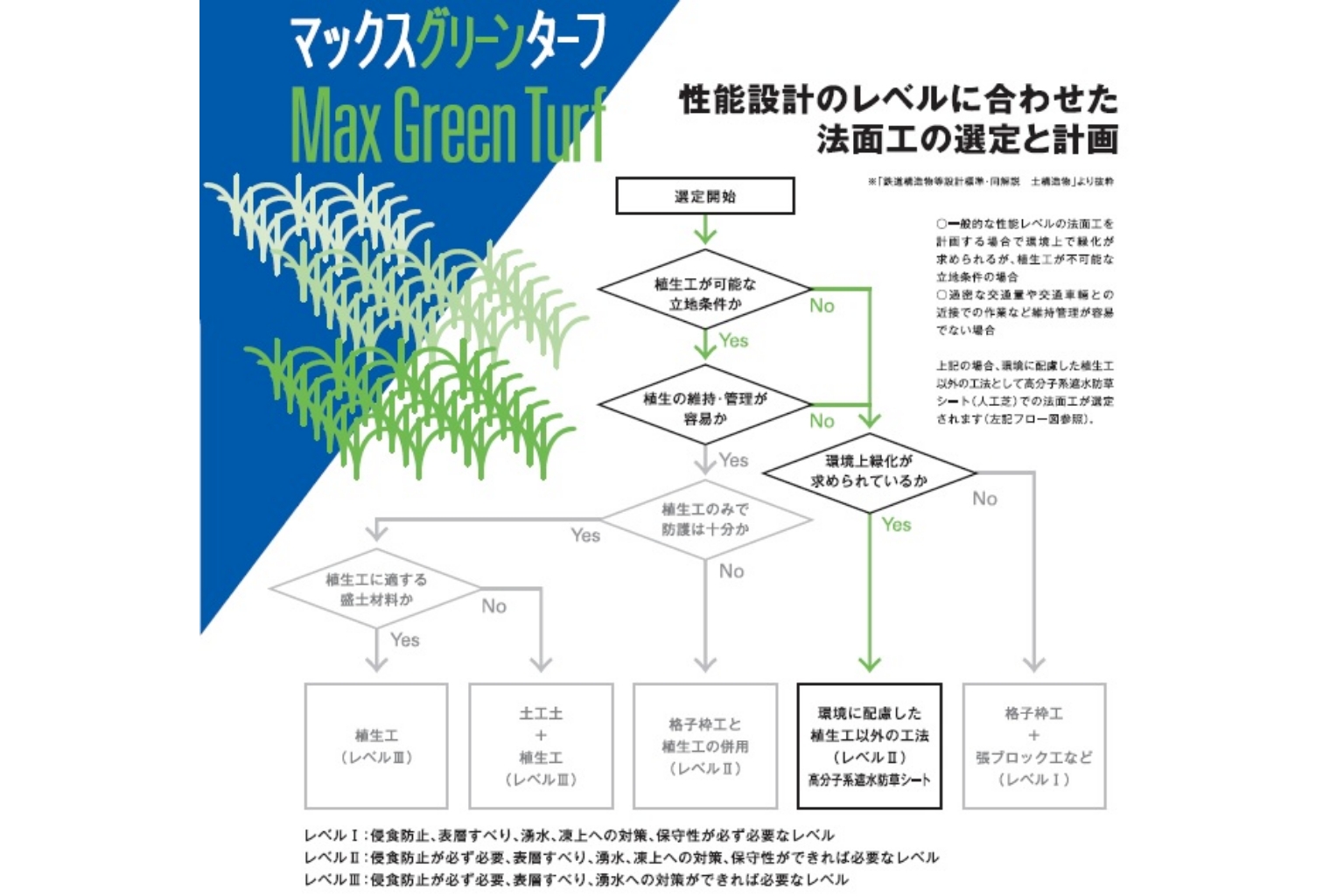

Selection and planning of slope works according to the level of performance design.
