Climb TACOM
Cloth formwork to which escape ropes or chains and resin nets can be attached for safety measures in reservoirs Climb TACOM
This fabric formwork (Climb TACOM) can be used to protect the slope surface and to attach a facility structure (rope, chain, or plastic net) for easy escape in the event of a fall into the reservoir.
*For sale only in the Japanese market.
Product & Service
Features
- Climb TACOM can be equipped with escape ropes at the required positions.
- The construction method is the same as for ordinary fabric formwork. No post-construction anchors, etc., need to be installed to secure the formwork.

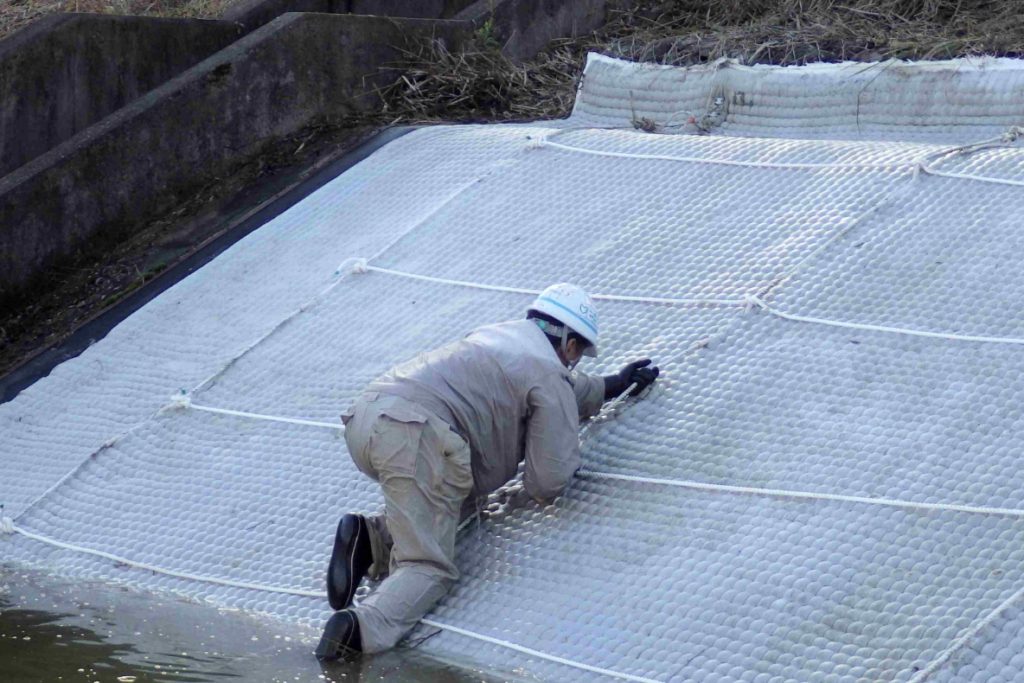

- Escape ropes can be attached across the entire slope surface to allow escape from anywhere.
- Escape ropes can be replaced less frequently by using chains or plastic nets.

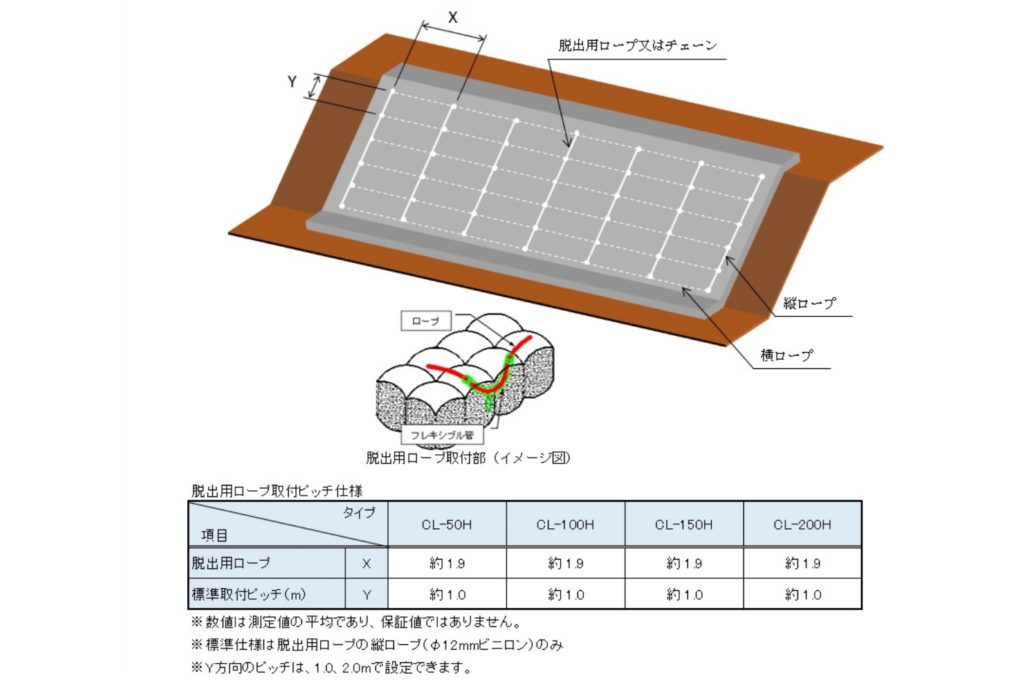

Escape rope attachment pitch
Climb TACOM standard specifications are for vertical escape ropes only. Horizontal ropes must be additionally installed.
Main components and installation procedures
Other Escape Facilities
Chain
Resin net
Standard dimensions
| item | Water cement ratio (W/C) | |||
|---|---|---|---|---|
| CL-50H | CL-100H | CL-150H | CL-200H | |
| Average thickness (cm) | 5 | 10 | 15 | 200 |
| Injection Material | mortar | mortar | mortar | concrete |
| Injection volume ( m3 ) | 6.0 | 12.0 | 18.0 | 22.9 |
Usage
Reservoir slope protection, regulating reservoir, reservoir slope protection, river revetment slope protection, other slope protection
