"Max Wall"
-Continuous box-type steel frame-
Continuous earth embankments can be installed quickly and easily.
Max Wall is a continuous box-shaped steel frame that can be applied as a temporary material for long-term temporary construction or main construction, as an emergency measure until the main restoration at the time of a disaster, or as a stockpile material for disaster prevention.
The structure consists of mesh cages (steel frames) welded with galvanized iron wire and lined with non-woven fabrics to prevent spillage of filling material inside the cages.
The steel frame is made of steel for durability and can be used for long-term temporary installation.
New Technology Information System “NETIS Registration” : Continuous Box Type Steel Frame
Max Wall Registration No. KK-130035-A
*For sale only in the Japanese market

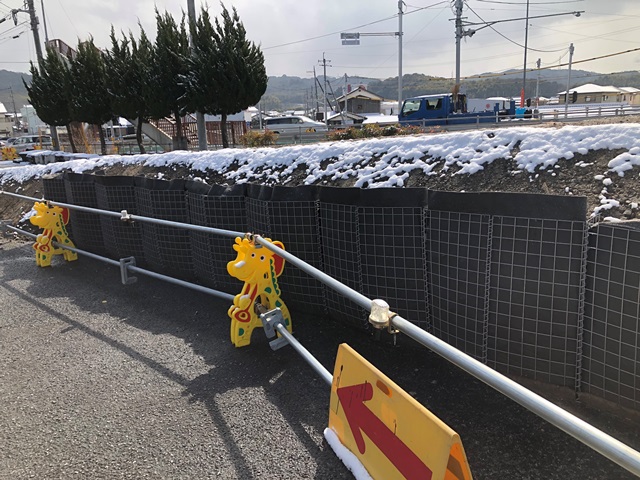

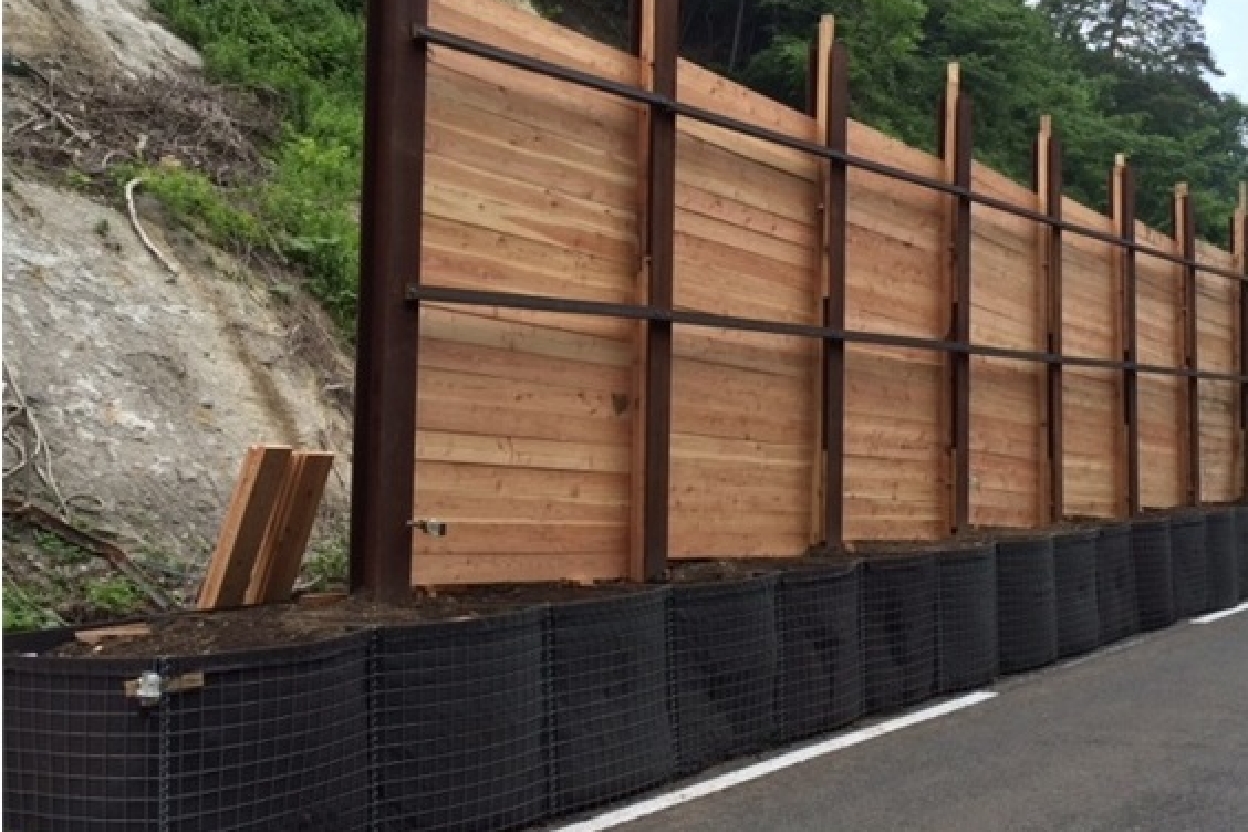

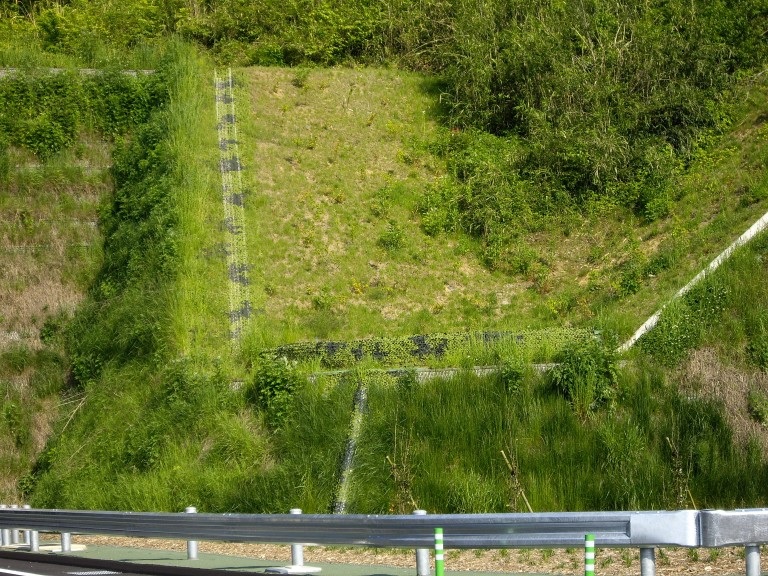

Related Achievements
Product & Service
Features
Product Overview

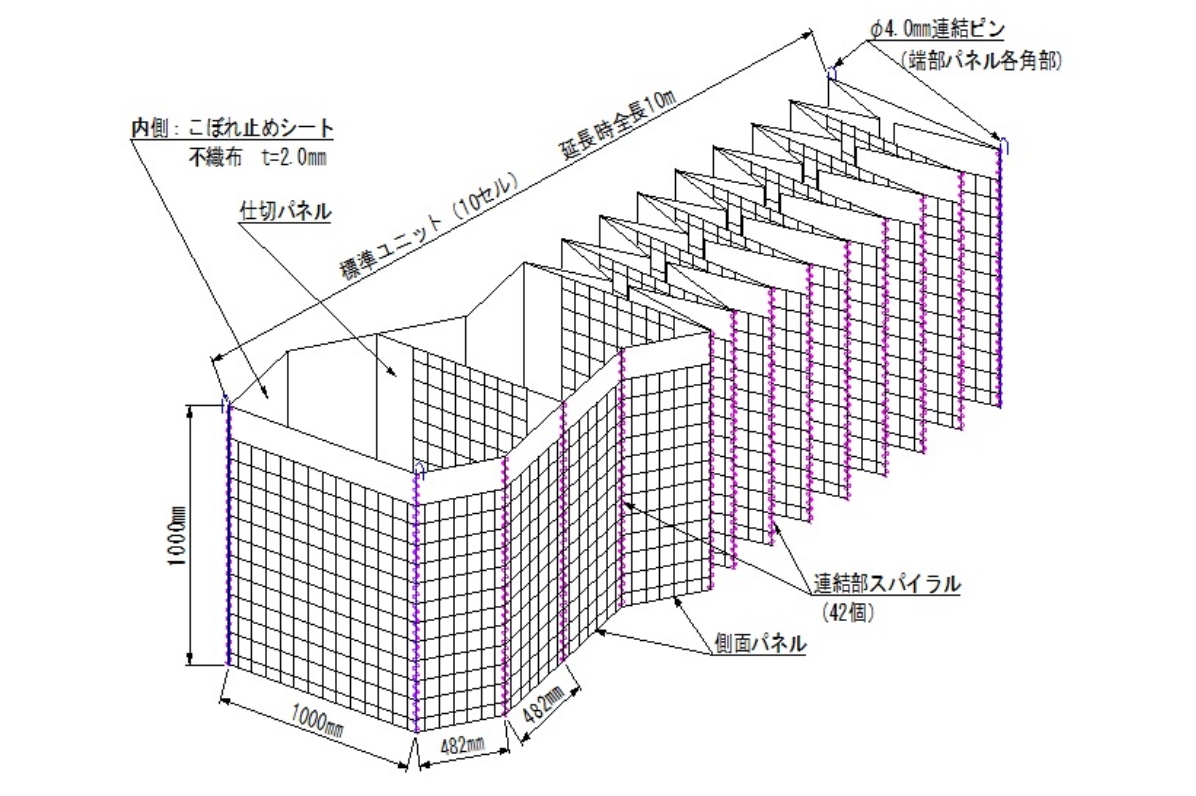

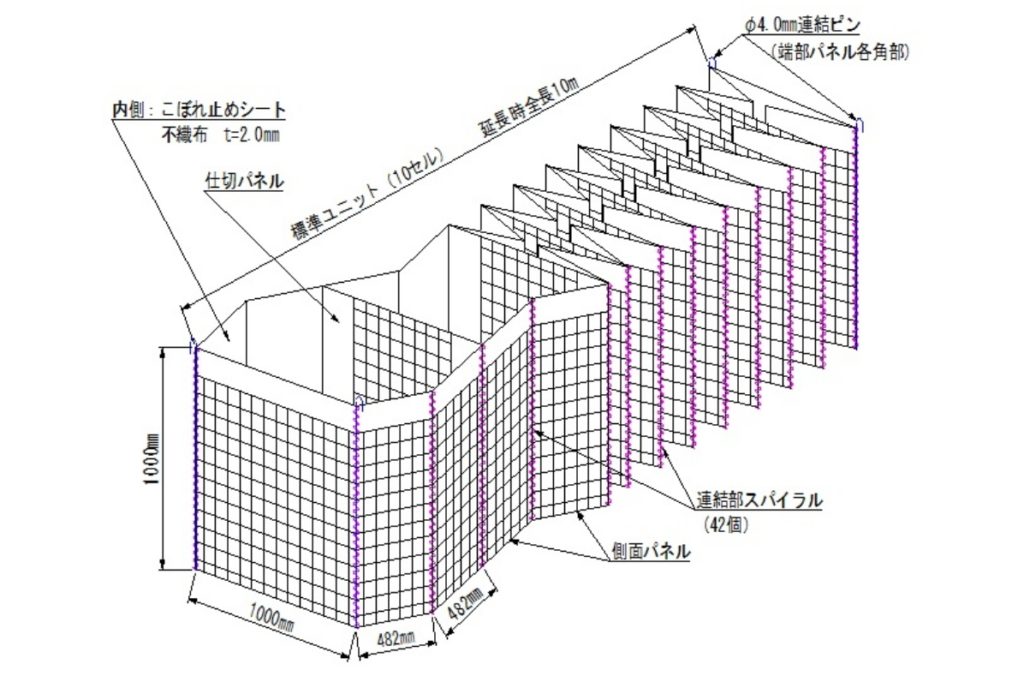

The structure consists of mesh-like baskets (steel frames) welded with galvanized iron wire and lined with non-woven fabric to prevent filling material from spilling inside the baskets. （The cages can be easily deployed and connected for filling and installation.

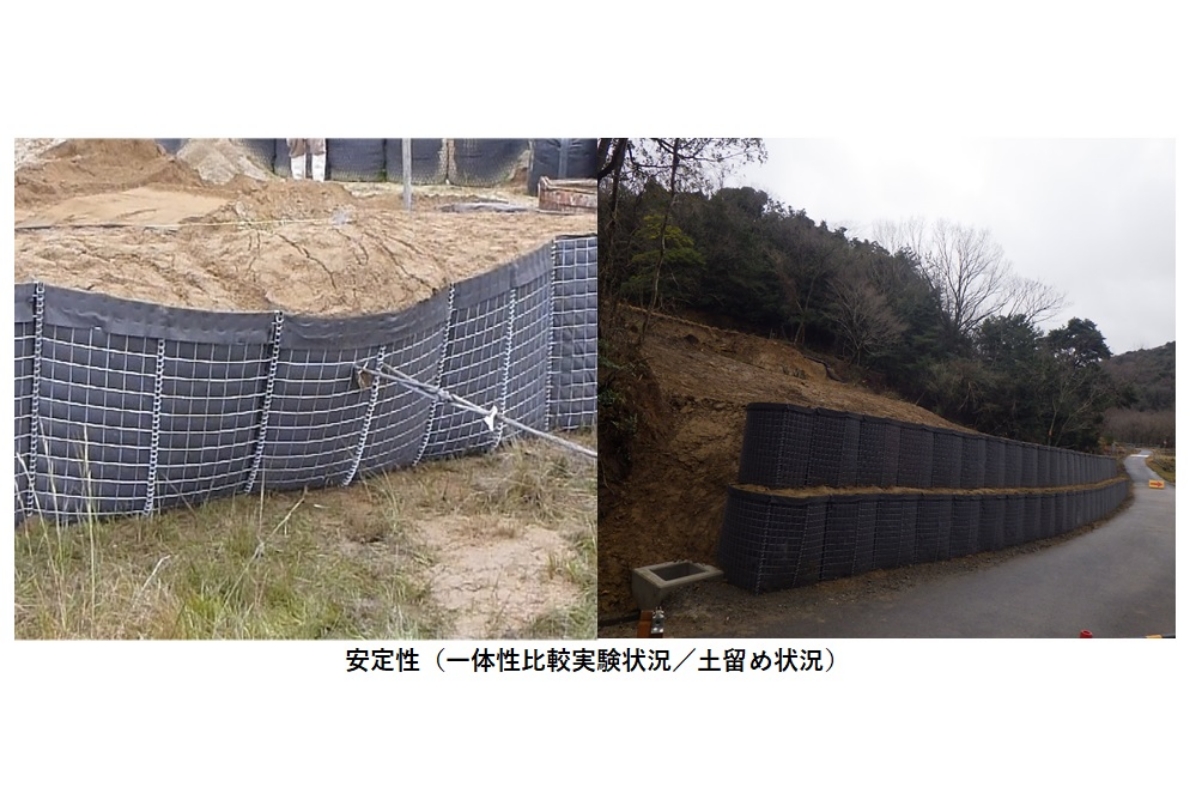

High stability
Since the steel frames are connected, they are strongly integrated and can withstand approximately 4 times* more load than large sandbags reinforced with binding belts, enabling the installation of earth embankments and earth retaining walls.
Based on our comparative experiments
High durability

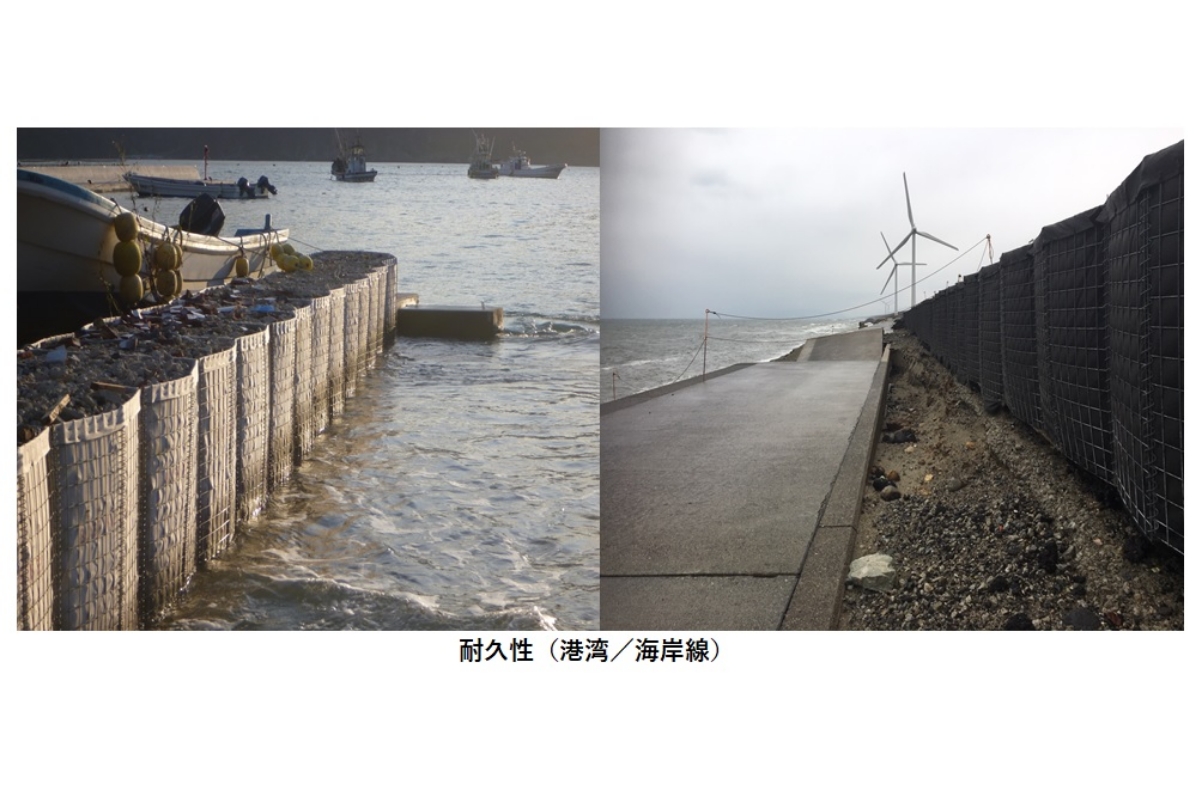

Steel frames welded with galvanized iron wire have durability performance of about 5 years in seawater splash areas and more than 10 years on land and in soil, and can be applied as long-term temporary structures.

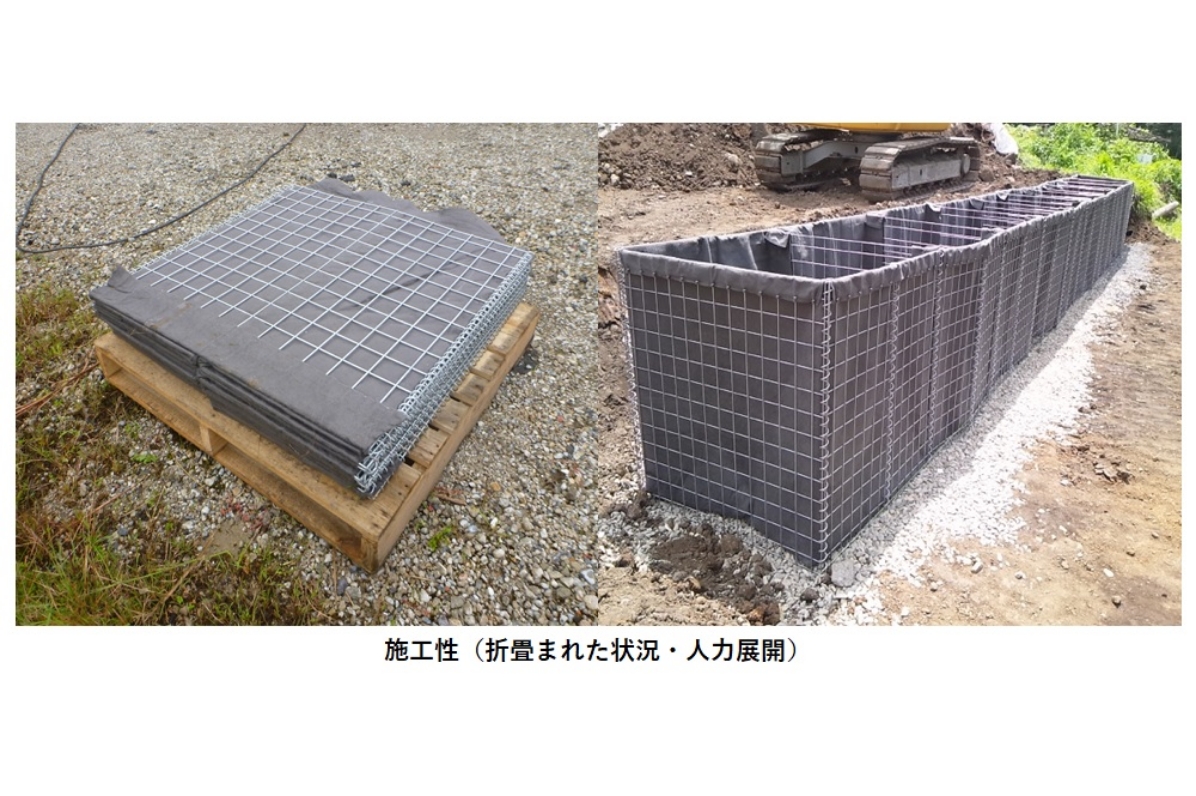

Easy to construct
Pre-assembled, it can be unrolled, filled, and installed immediately after unloading on site, and can be split, extended, bent, and stacked. Sand, crushed stone, or soil generated on site can be used as filling material.

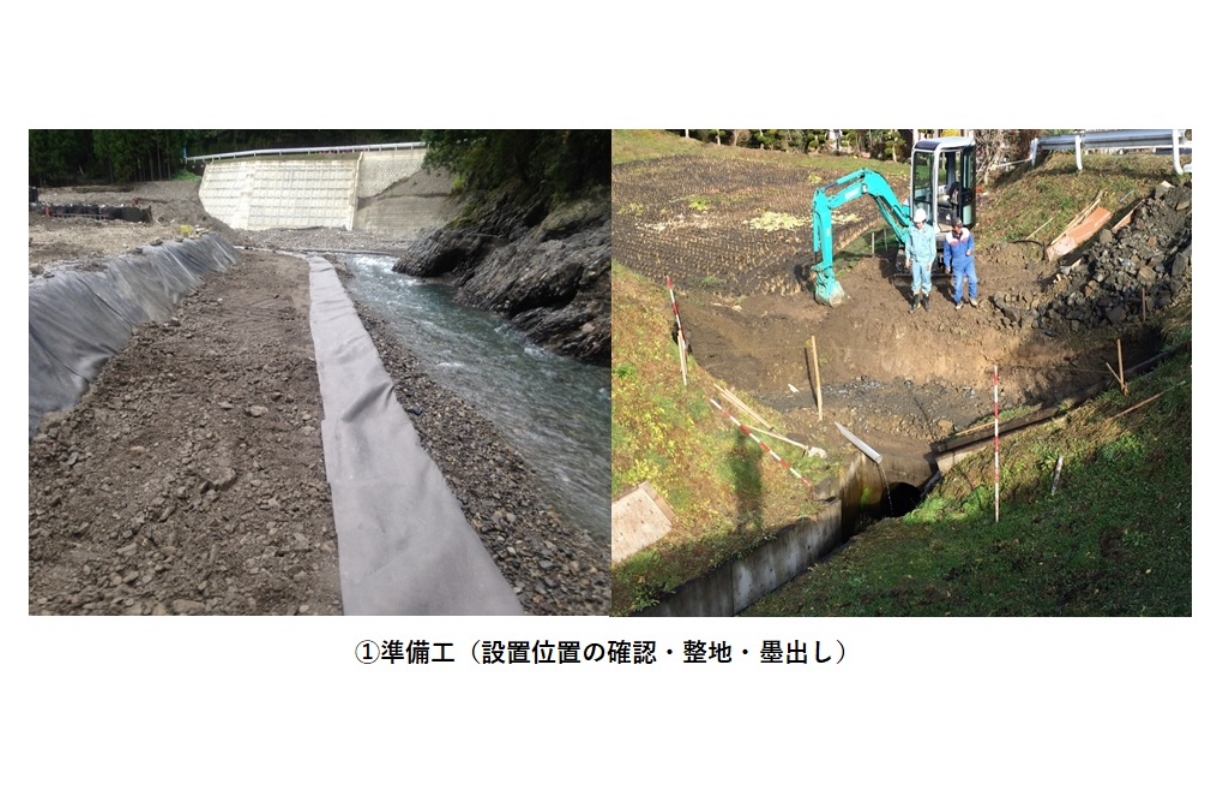

Preparatory works
- Confirmation, leveling, and marking of installation location

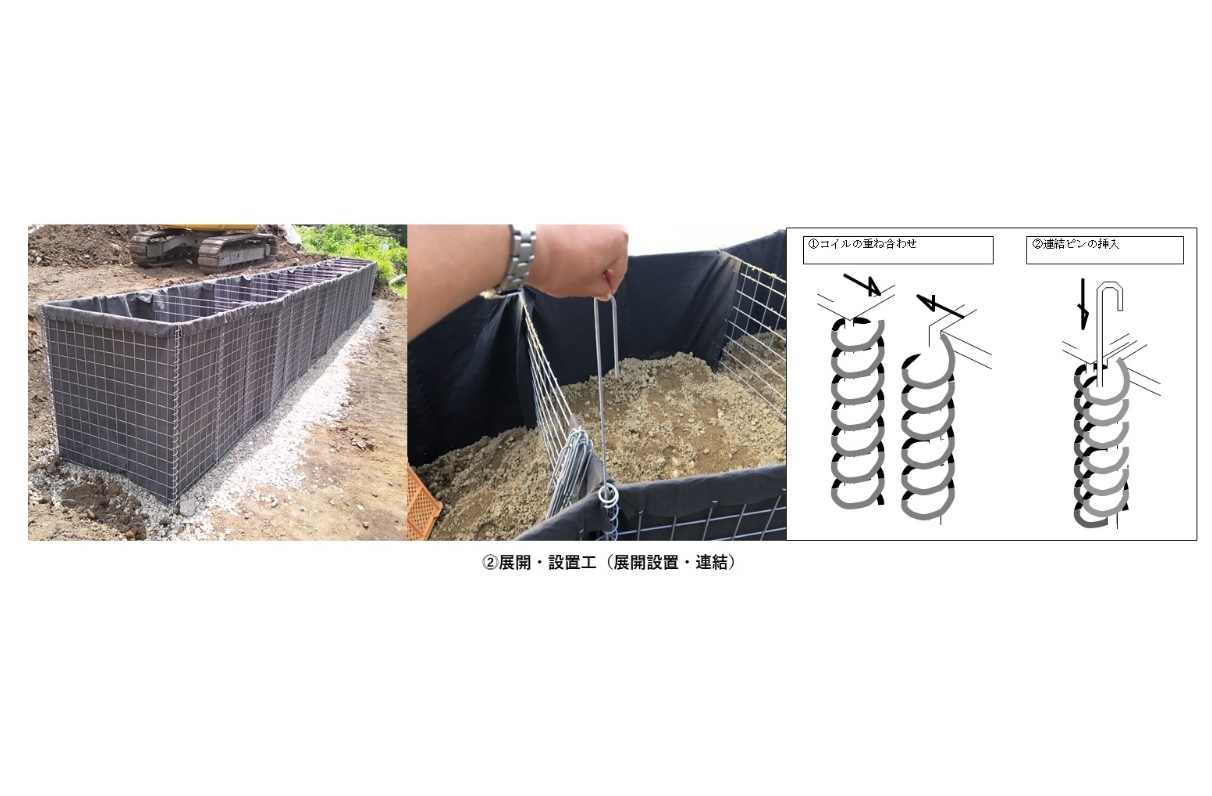

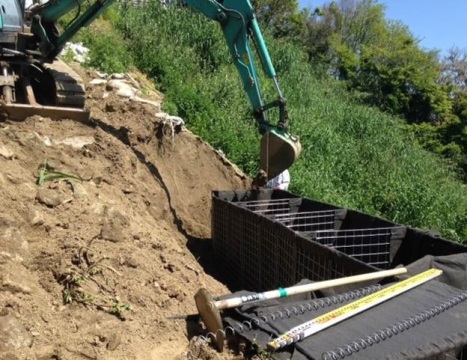

Deployment and installation work
- Deployment Installation/Connection

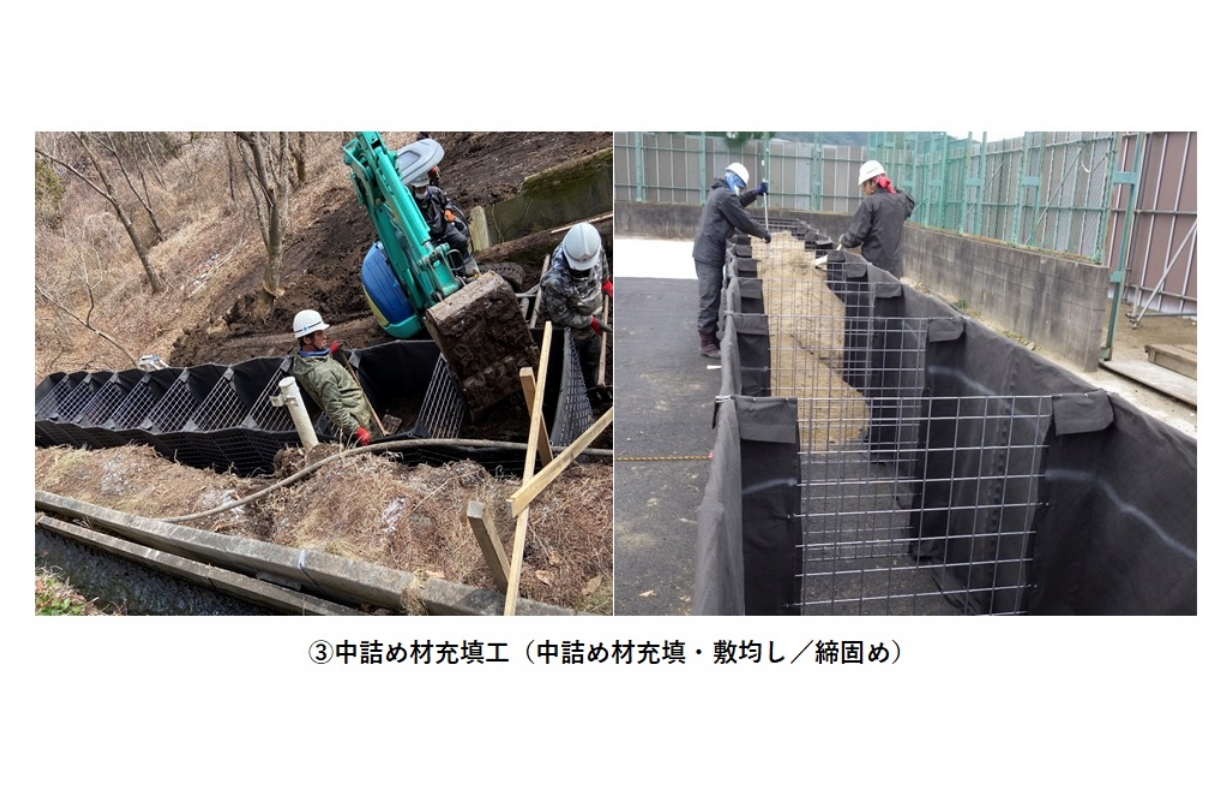

Filling material filling
- Filling and leveling/compaction of filling material
Standard specification
| type | Thickness (mm) | Width (m) | number of cells | Total length (m) | Weight (kg) |
|---|---|---|---|---|---|
| MW-1350 | 1.35 | 1.00 | 10 | 10.0 | Approximately 140 |
| MW-1000 | 1.00 | 1.00 | 10 | 10.0 | Approx. 110 |
| MW-700 | 0.70 | 0.70 | 5 | 3.5 | Approximately 30 |
Total length is approximate when expanded.

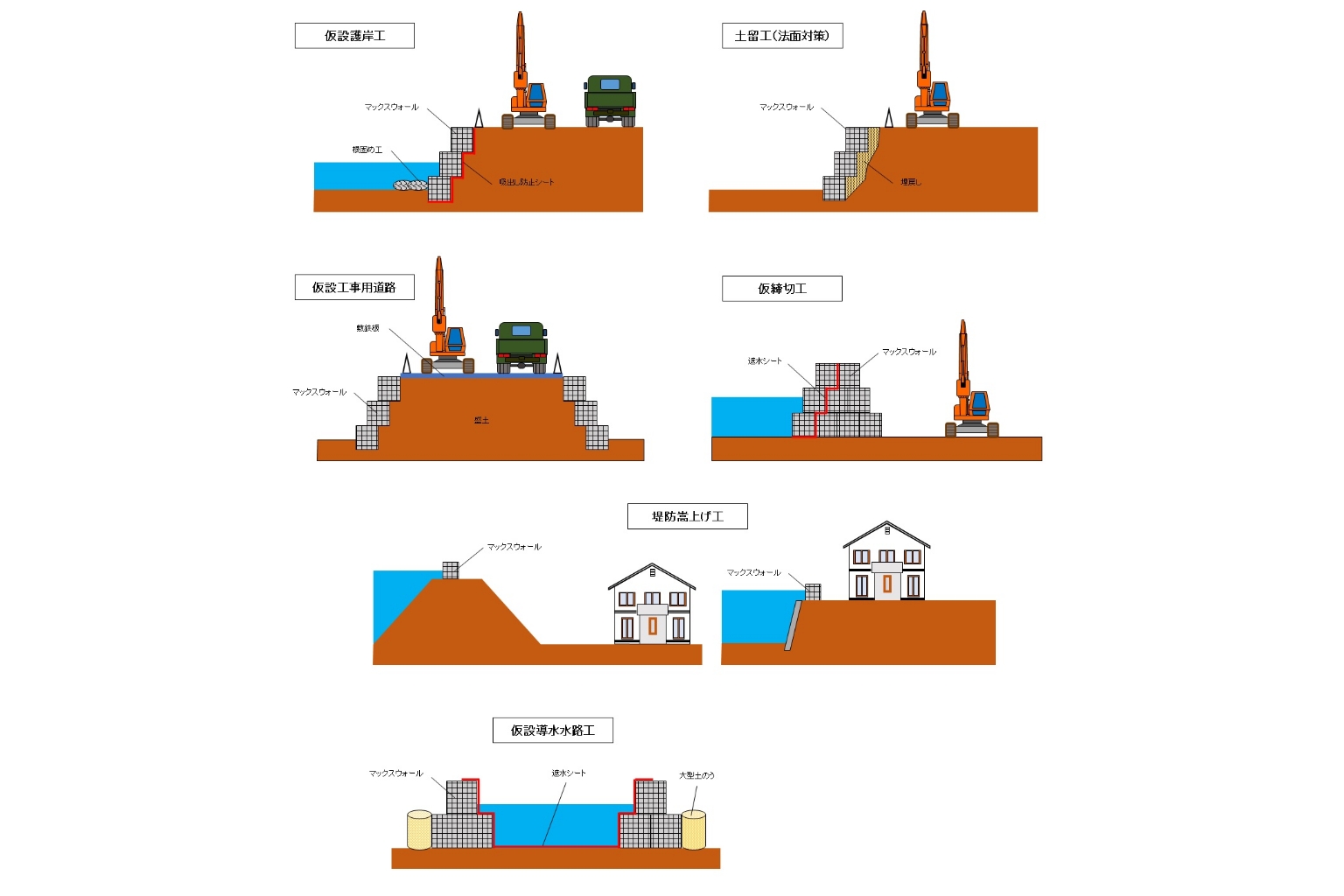

Usage
- Temporary revetment and earth retaining works (slope measures)
- Temporary construction roads and temporary road closures
- Levee raising and temporary water channel construction
