”Delta Panel” Watertight Wall
Drastic reduction of time and effort required for installation! A convenient flood prevention tool that can be stored compactly during the day.
When a sudden torrential rain or similar event is expected to flood a building, this flood prevention tool guards the area where water enters with a strip of structurally stable triangular cross-sectional membrane structure to limit damage. Unlike conventional sandbags, there is no need to secure soil, fill the bags, or pile up the finished sandbags, and installation is completed simply by connecting and assembling them on site.
*For sale only in the Japanese market
catalog
Related Achievements
Product & Service
Strengths

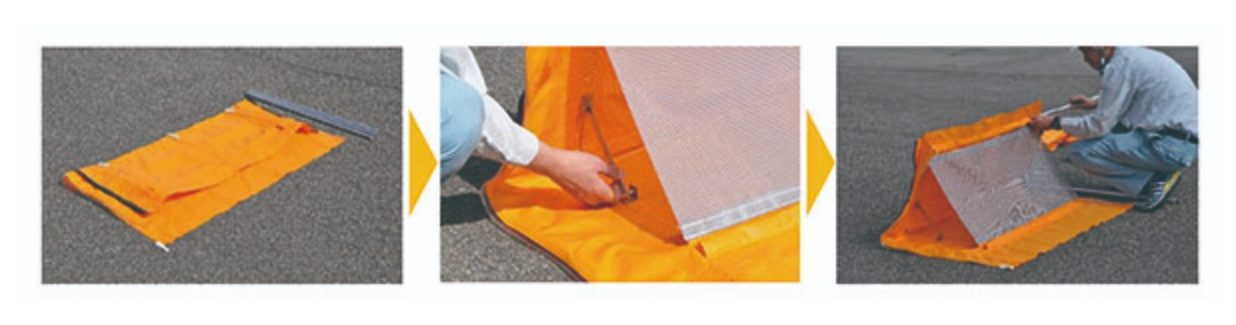

Easy to install / Takes about 1/10 of the time of sandbags
The “DELTA PANEL” is completed simply by connecting panels made of sheets and setting aluminum frames and pipes. Since there is no bagging or stacking, the work time is about one-tenth that of sandbags. These are approximate values based on our measurements and are not guaranteed.

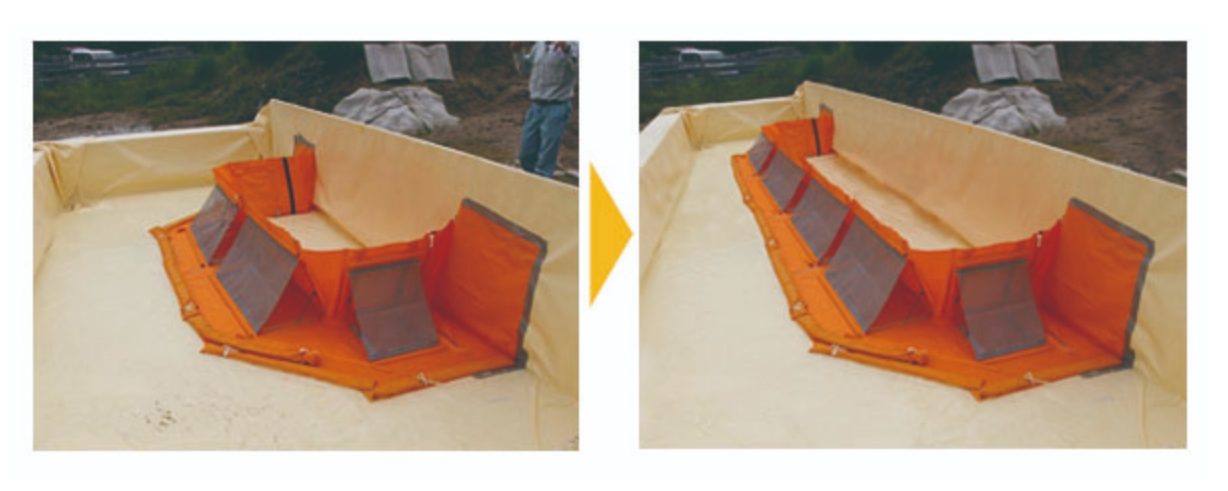

High functionality / Can stop water without blocking the door and can be used for wide frontage
Because the panels are structurally self-supporting on their own, the “Delta Panel” can maintain a distance from walls and doors. It allows access to the building, and furthermore, by connecting panels, it can be used for wide openings.

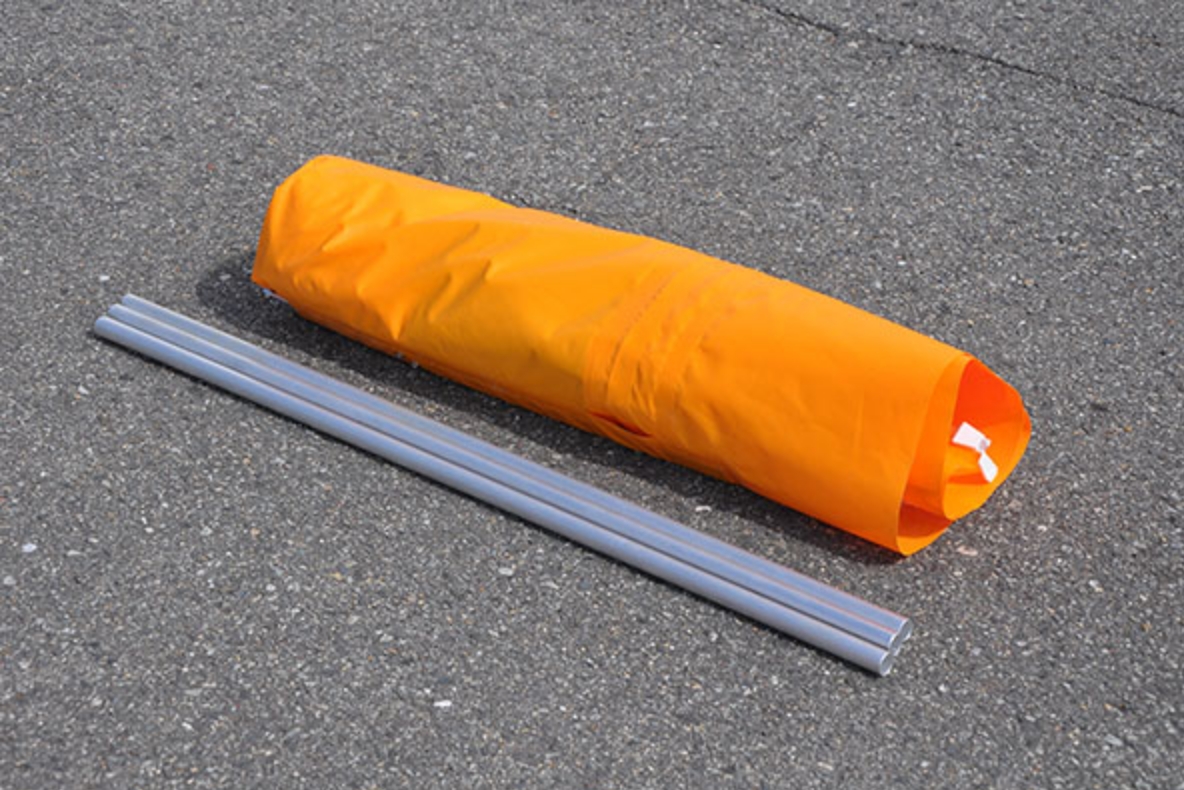

Compact / Folds up to save space except in emergencies
The pipe can be pulled out, folded and rolled up for easy transportation. It also takes up less space when stored.

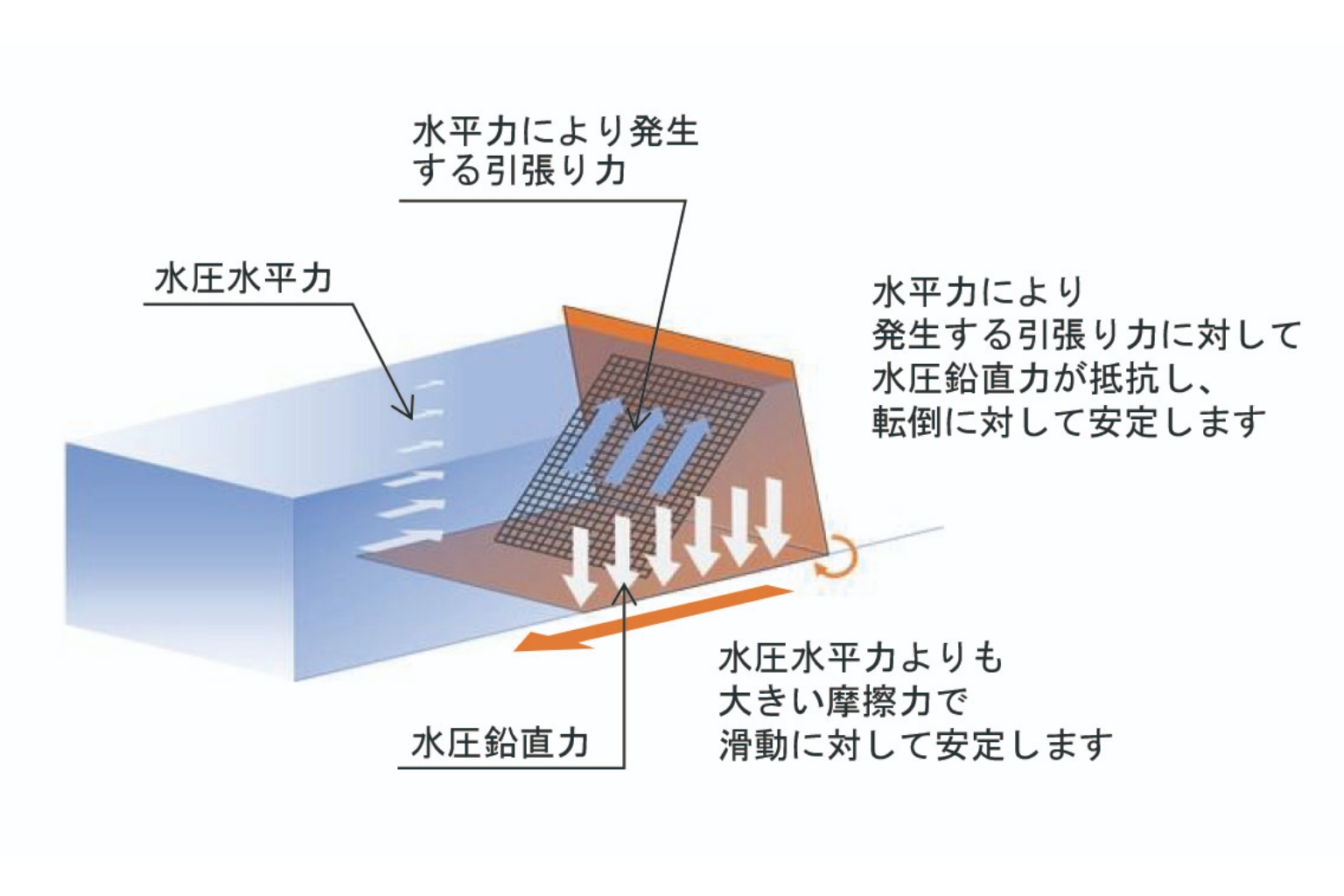

Delta Panel Mechanism
The “Delta Panel” consists of a lightweight, yet durable waterproofing sheet, as well as aluminum frames, pipes, and mesh sheets to form a structurally stable triangular cross-section (patent pending) to resist water pressure caused by rising water.

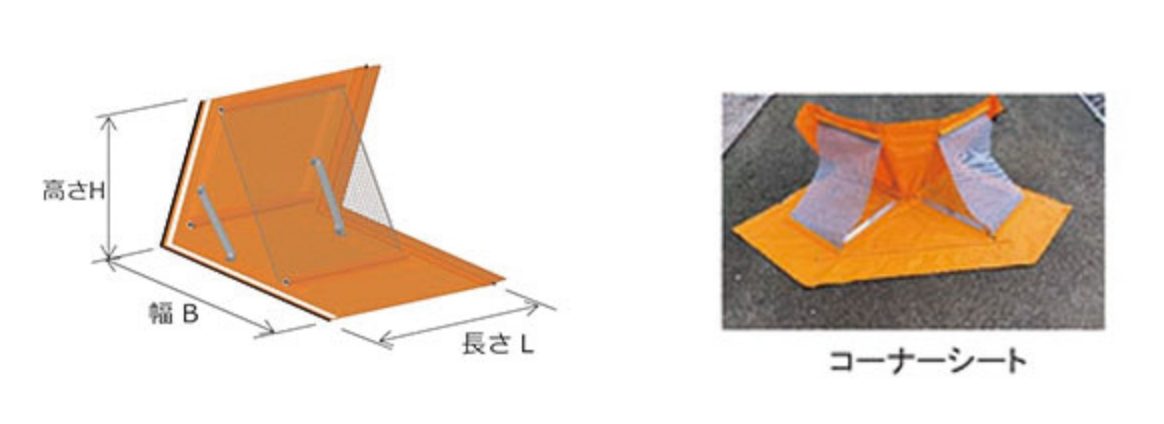

Product Specifications
| QP-2121-Low | DP-100 |
|---|---|
| Height H (cm) | 60 |
| Width B (cm) | 78 |
| Length L (cm) | 100 |
| Weight (kg) | Approx. 3.0 |
| Material properties | Base fabric: 100% polyester Coating resin: polyvinyl chloride (PVC) |
| Applicable depth (cm) | Less than 50 |
| Location of application | Flood control for houses, stores, buildings, parking lots and underground entrances |
*Specifications are subject to change without notice due to specification changes.
