COOL MQ heat stroke prevention
Hybrid air tents + dedicated air conditioners provide cool and comfortable spaces

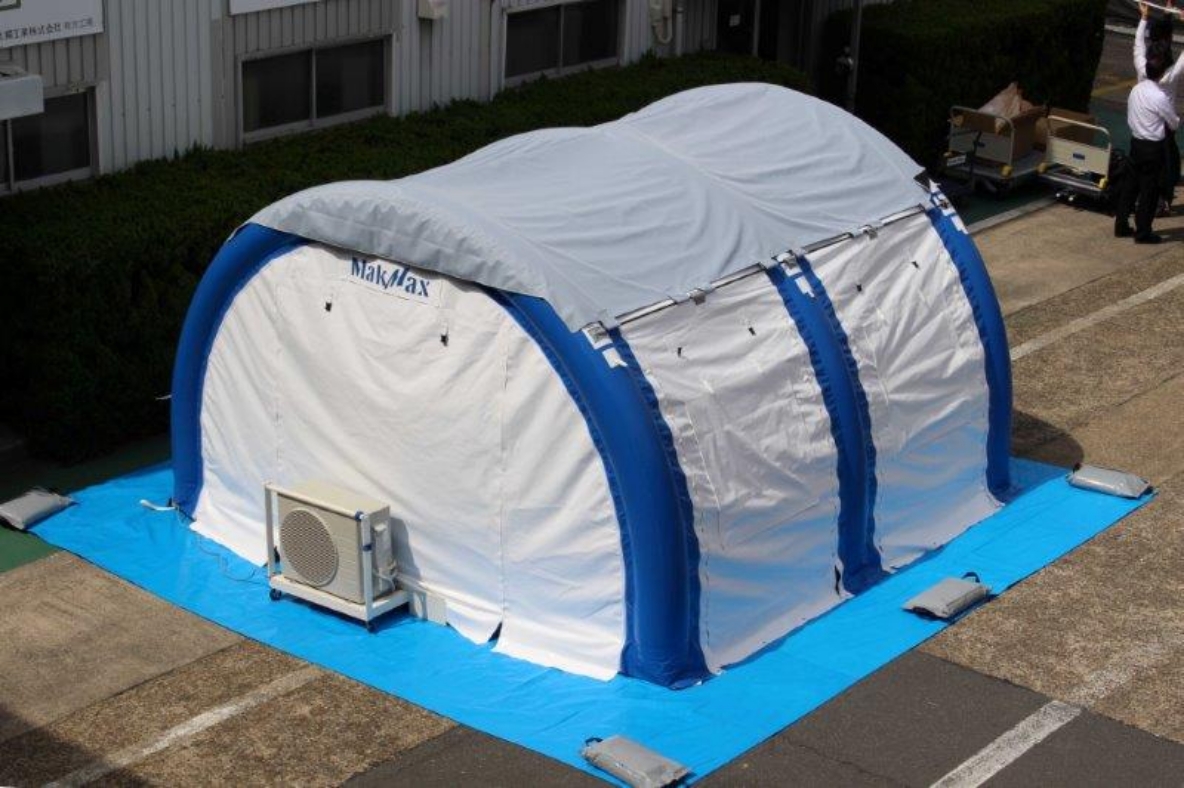

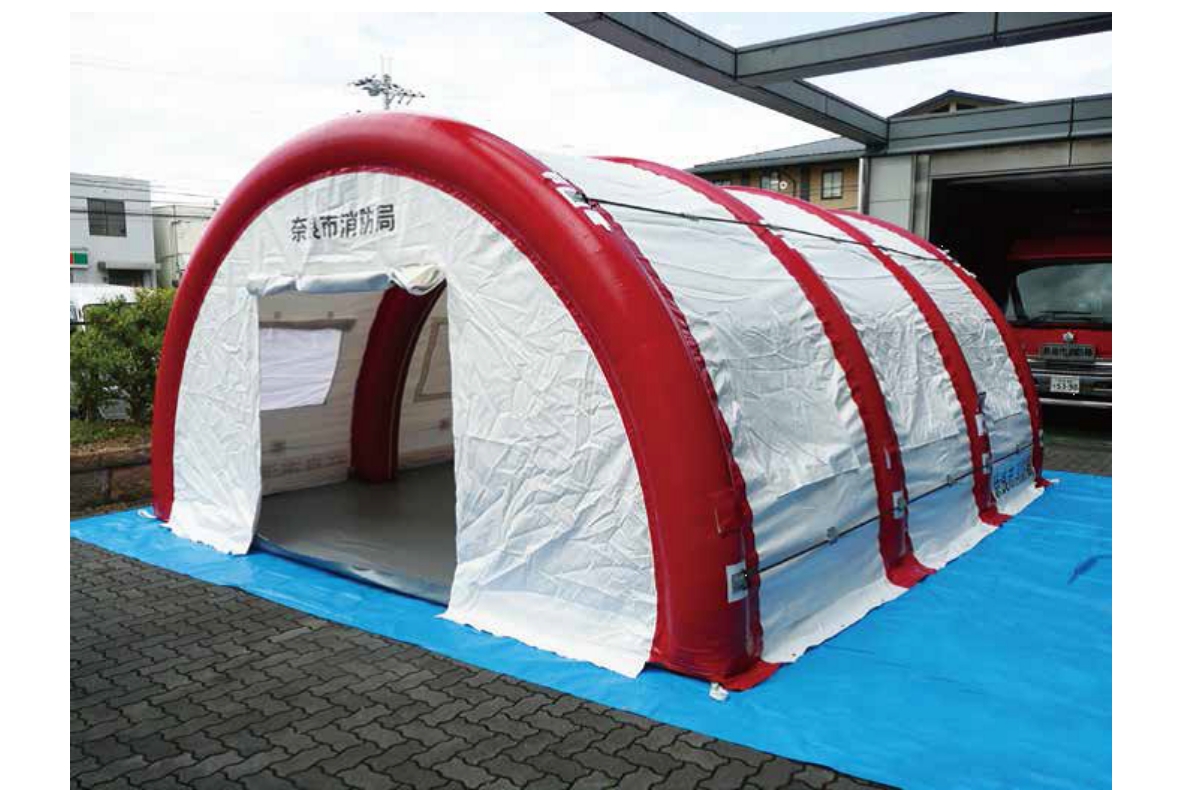

COOL MQ is a heat stroke prevention air tent developed for use in emergency treatment rooms and rest areas at construction sites and various events that are susceptible to the effects of extreme heat. The emergency air tent “MAK Quick Shelter” is optionally equipped with a special air conditioner on casters and a fly sheet for sunshade to improve the indoor temperature environment while bringing a cool and comfortable breeze into the shelter.
Related Projects
Product & Service
Strengths
Sunshade Fly

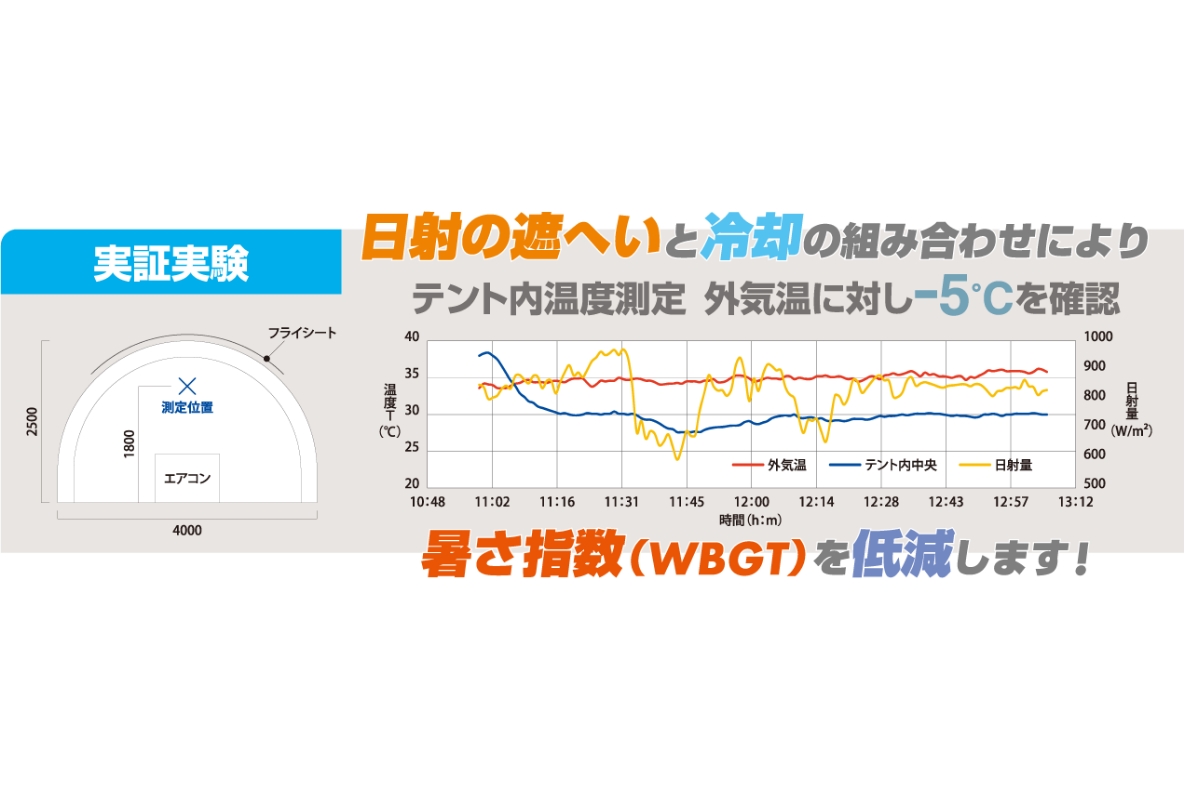

Equipped with a sunshade flysheet, the shelter reduces the amount of sunlight coming from outdoors. It increases heat shielding properties and suppresses temperature rises inside the shelter.

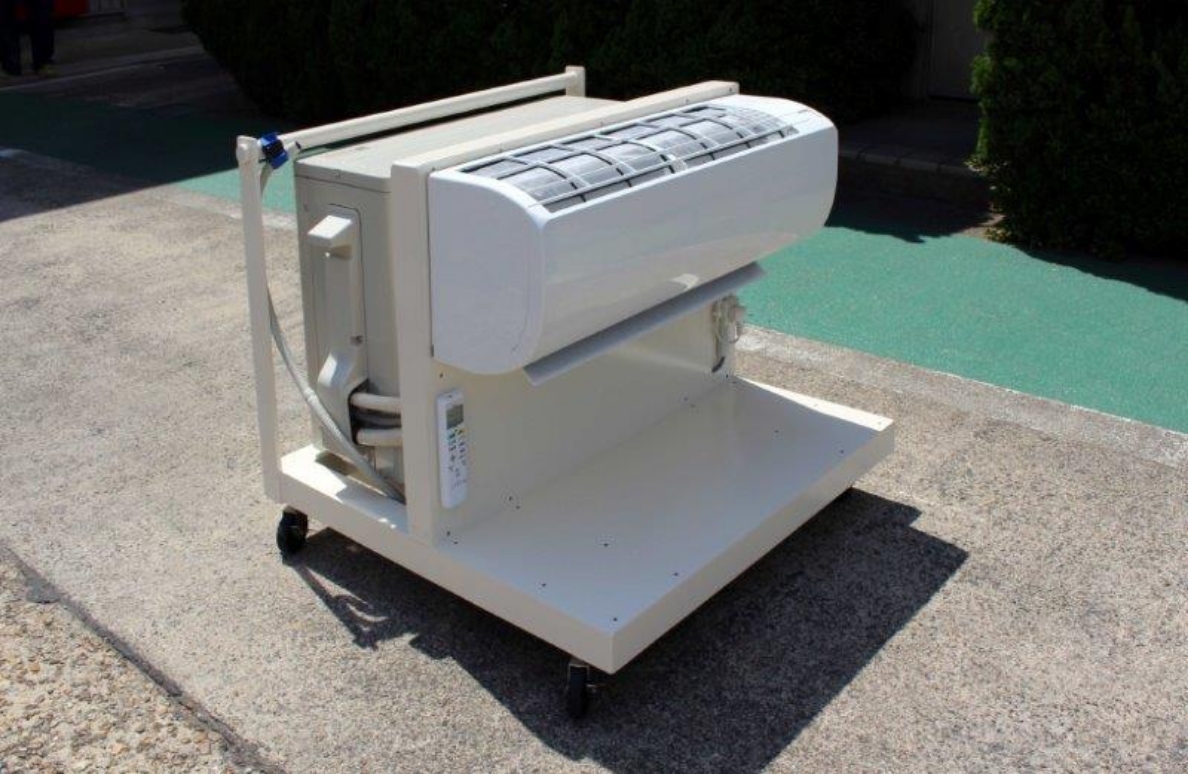

Dedicated air conditioner (optional)
The outdoor unit and indoor unit are integrated as a unit type, and only the outdoor unit is installed outside the shelter with a partition board. The shelter is equipped with casters so that it can be moved by an adult and is easy to set up and take down.
(technical) specification
MAK Quick Shelter
Dedicated air conditioner
Size: 800 mm x 835 mm x 752 mm (W x L x H)
Weight: approx. 50Kg Cooling capacity: 3.6kW Power consumption: 1160w
Operating current: 13.0 A (max. 16.6 A) Power supply: single-phase 100 V
