"MAK Quick Shelter" Hybrid Air Tent
We provide the space you need, when you need it, where you need it.
The MAK Quick Shelter is a revolutionary hybrid air tent that can be quickly set up in the event of an emergency or disaster.
Product & Service
The "Mak Quick Shelter" provides support in a variety of situations.
Can be installed in a short time when needed
Disasters and infectious disease outbreaks that may occur at any time.
To be prepared for this, it is important that a tent can be set up in a short time and by a small number of people when needed. The MacQuick Shelter is lightweight and simple in construction. It can be set up by anyone, including women.
For example, for the MQ-442-A, setup time is 5 to 6 minutes with two people working.

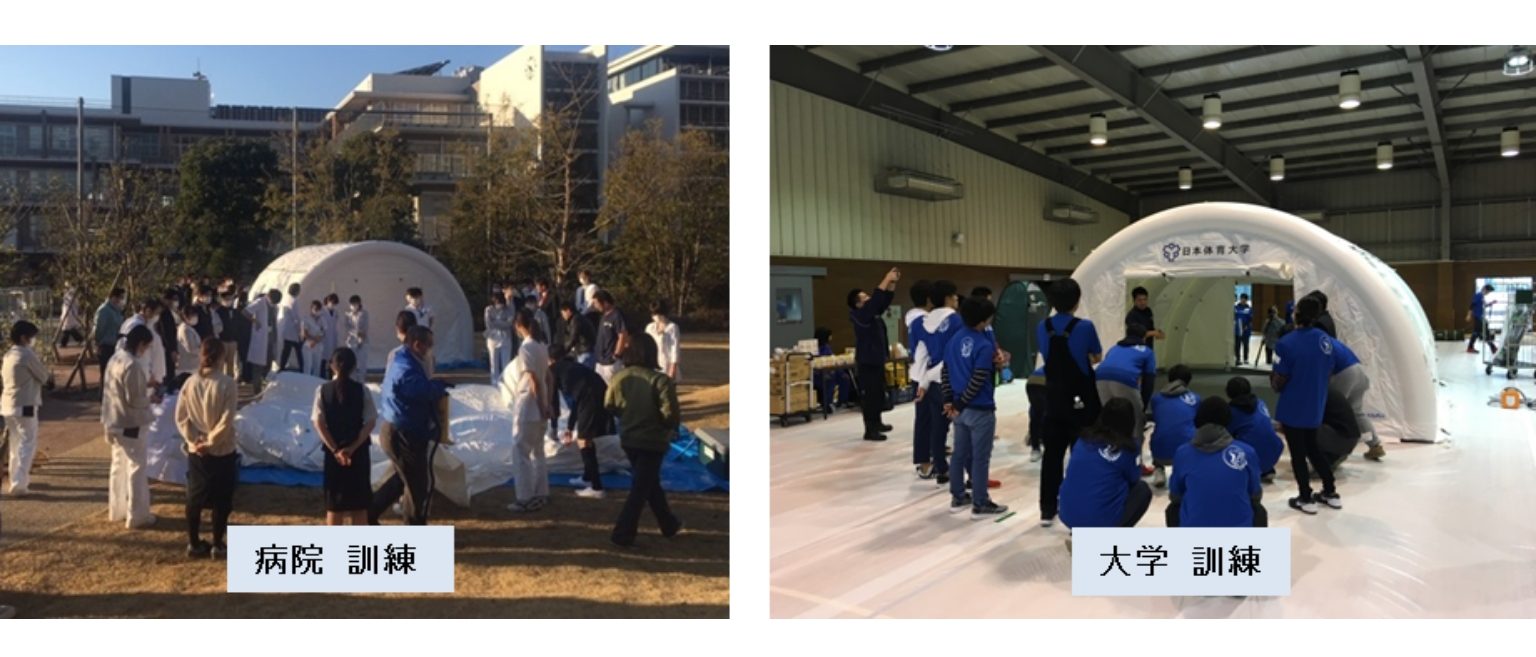

MAK Quick Shelter Installation Experience
Can be used wherever needed
Tents are not always needed near warehouses where they are stockpiled and stored. For example, many activities take place in remote areas, such as disaster recovery and emergency construction. The compact, easily transportable “MAK Quick Shelter” can be easily carried and transported to the site.
MAK Quick Shelter Installation Experience
Create the space you need
Air tents, with their integrated roof, walls, and floor, are not only faster to set up than frame tents, but are also less susceptible to outside influences. They are effective in preventing wind, rain, and ultraviolet rays from penetrating the tent.

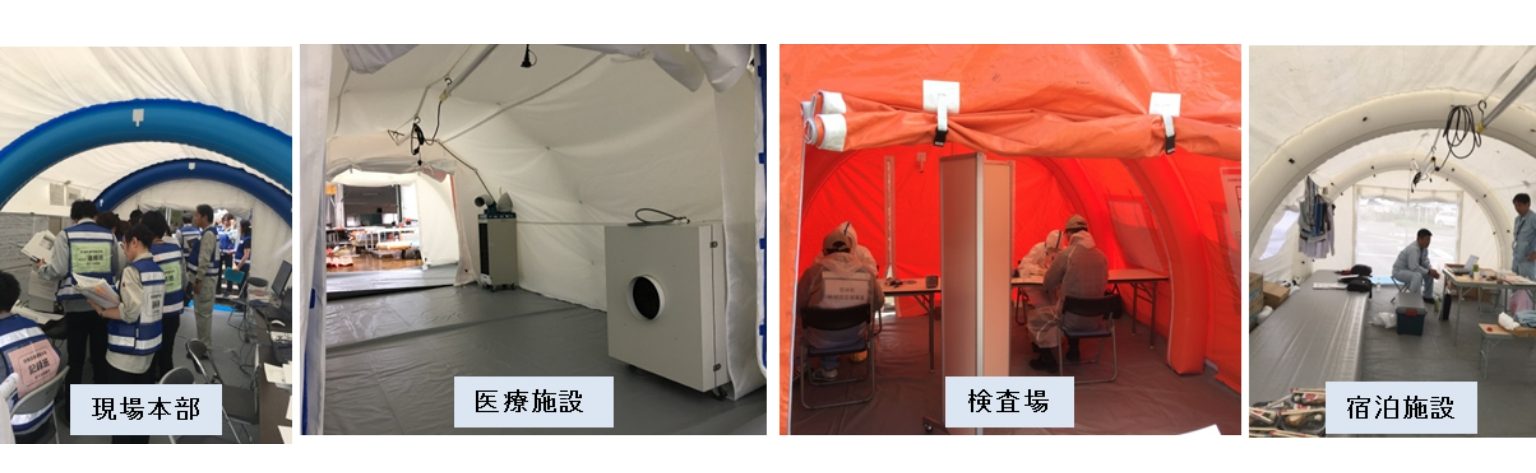

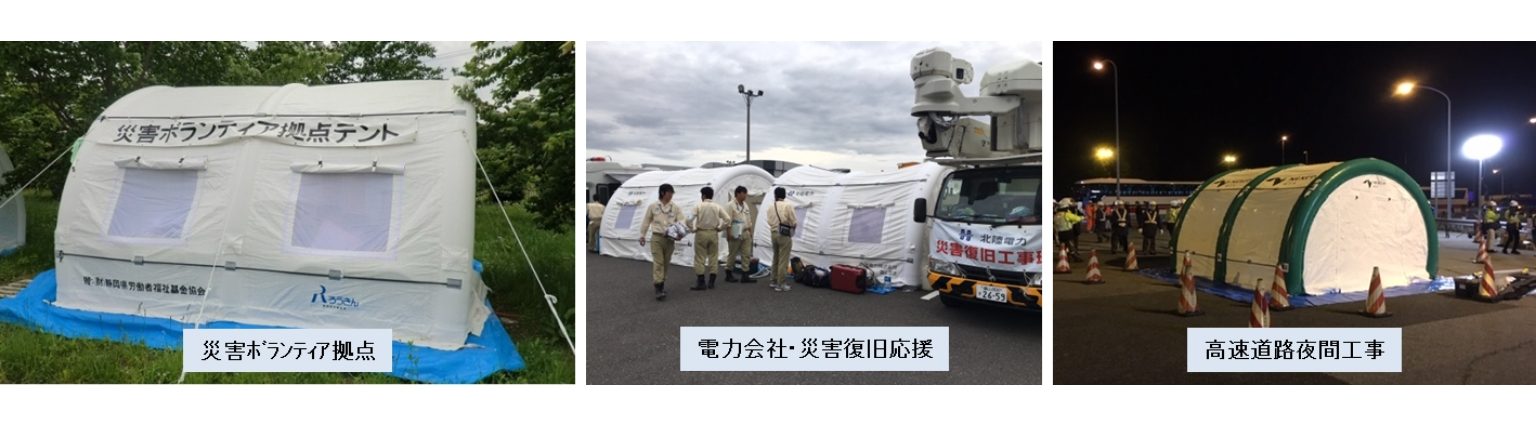

Taking advantage of these features, “MAK Quick Shelter” is used in various applications such as headquarters facilities, rescue and medical facilities, and lodging facilities.
MAK Quick Shelter Installation Experience

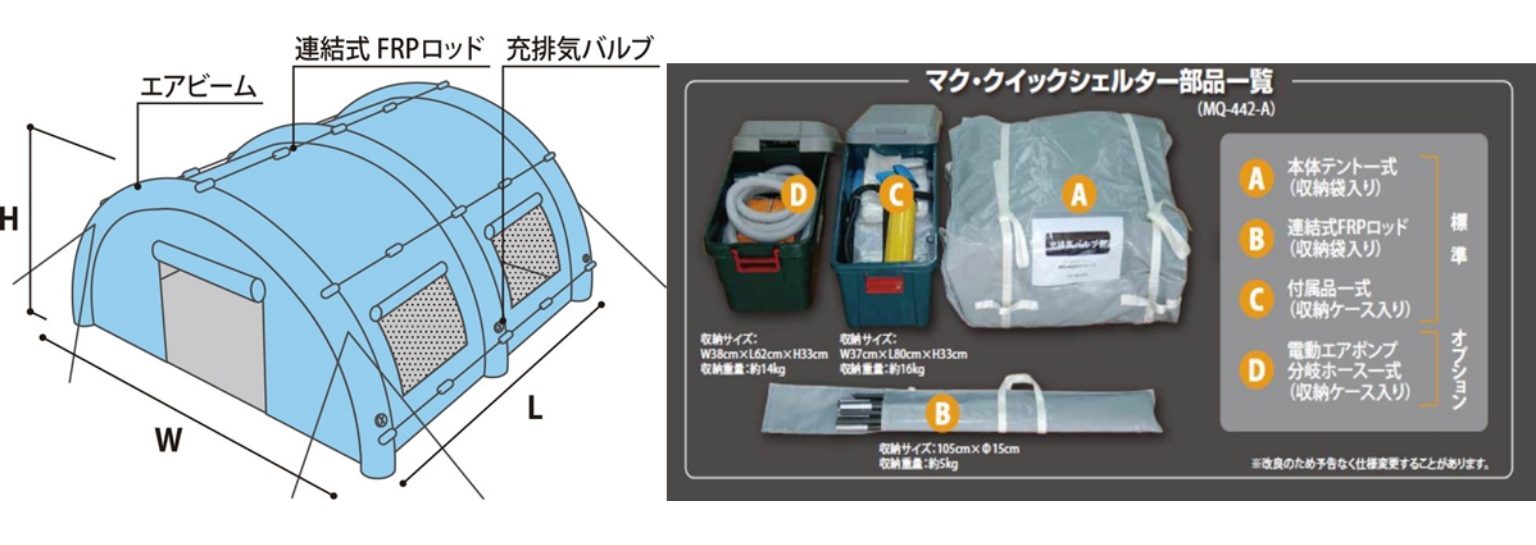

The “MAK Quick Shelter” consists of

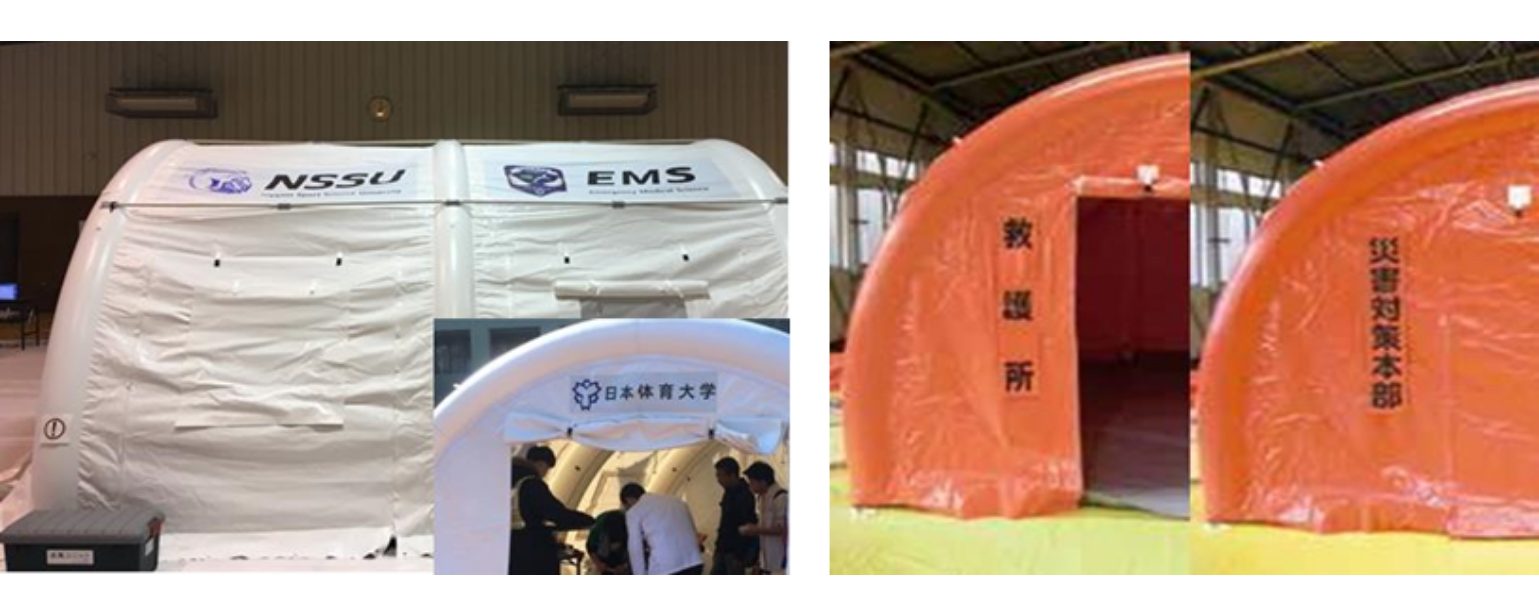

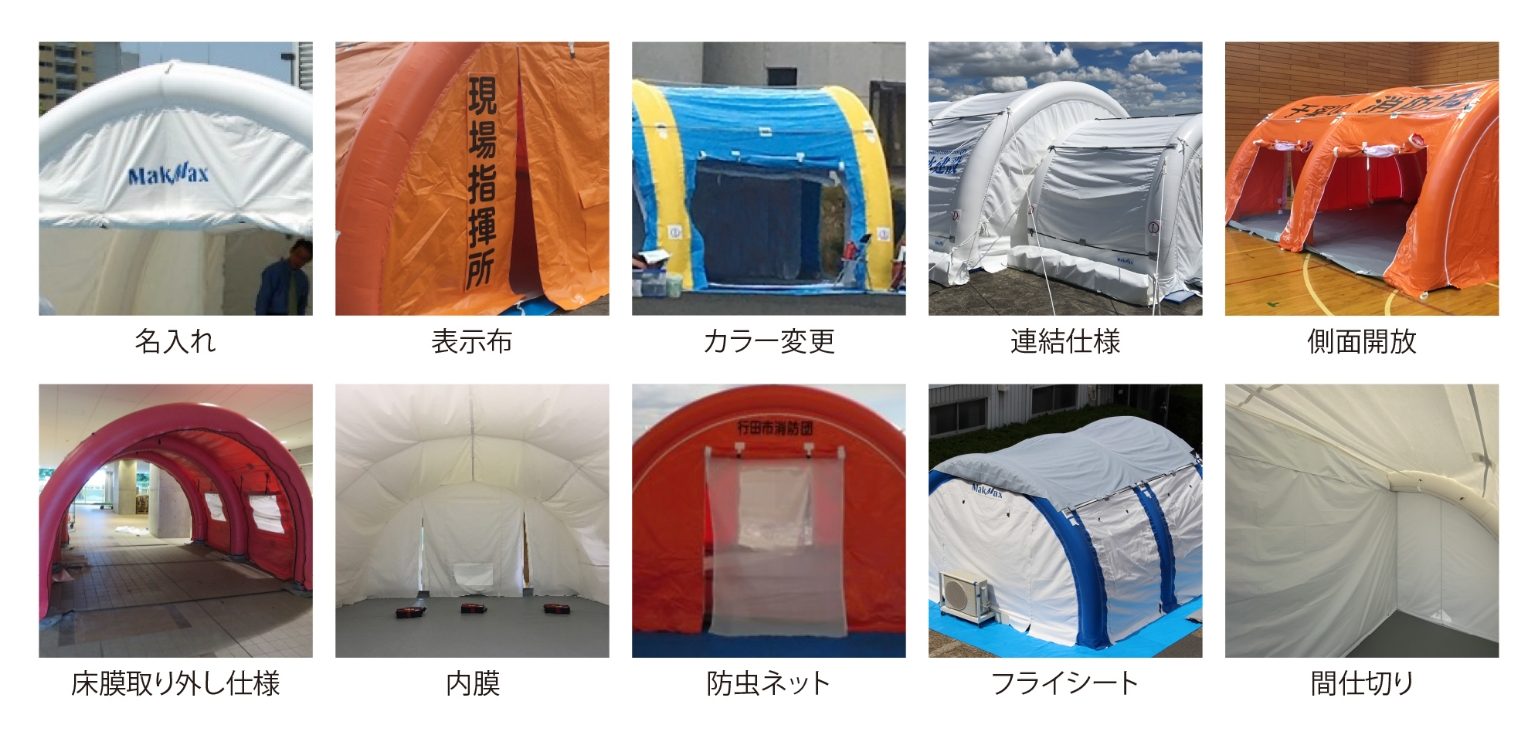

Option: Name/logo mark, display cloth
The name of the municipality, organization, or corporation can be placed on the gable end or side. This will not only increase convenience for users, but also enhance the image of the company.
In addition, a sheet with Velcro tape can be used to attach a different labeling cloth to indicate the use of the air tent, such as “first aid station” or “disaster response headquarters”.
Option: Connection specification

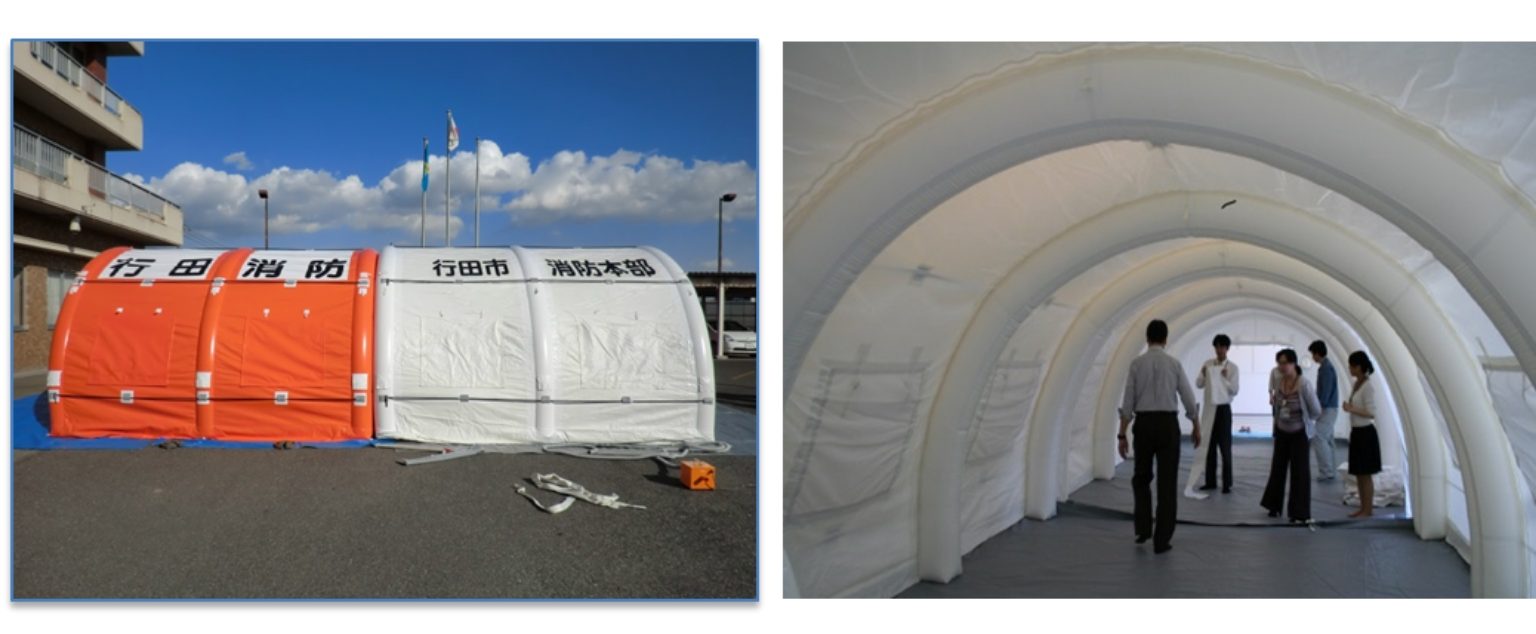

The gable can be removed and connected to other tents of the same type by using a special connecting cloth. This allows for the rapid creation of large spaces as needed.

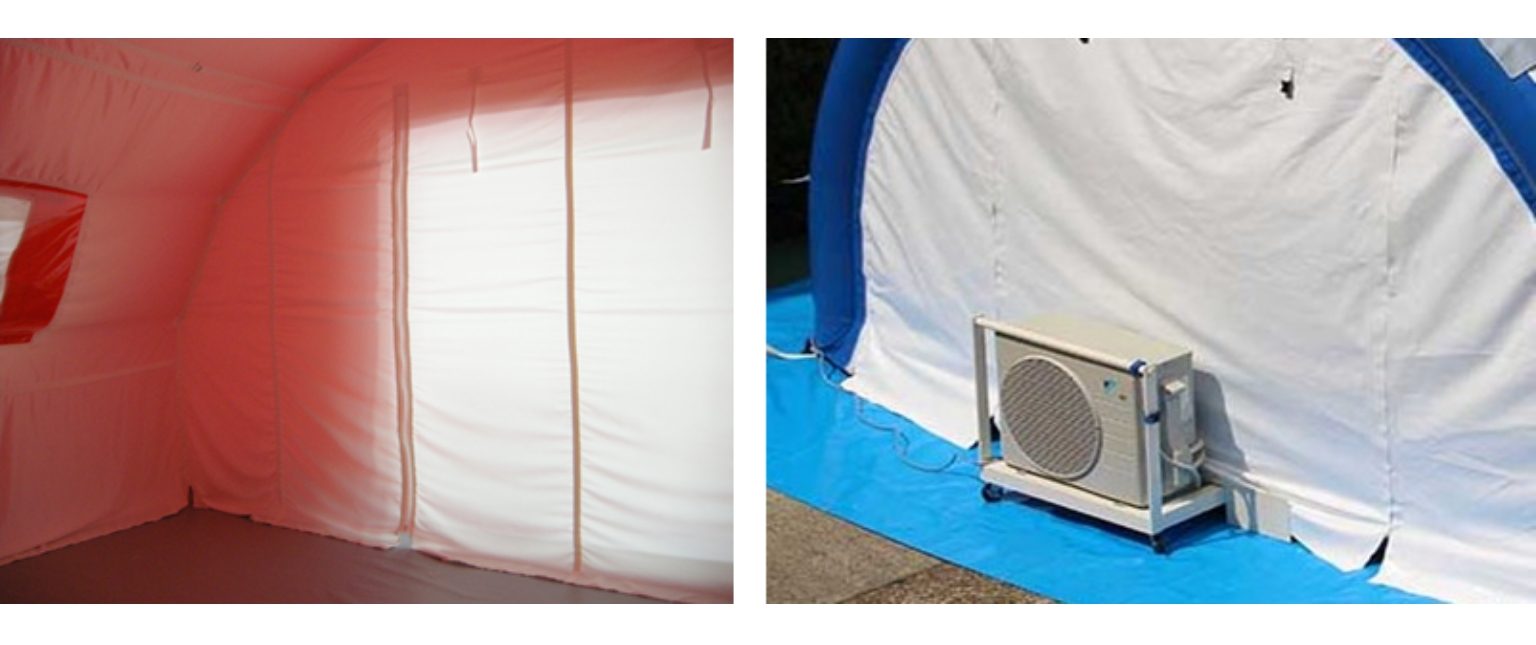

Option: Inner Membrane, Air Conditioning
To adjust the temperature and humidity inside the air tent, an inner membrane can be attached or a dedicated air conditioner can be installed. Air tents can also be used as facilities for heat stroke prevention.
Hybrid Air Tent

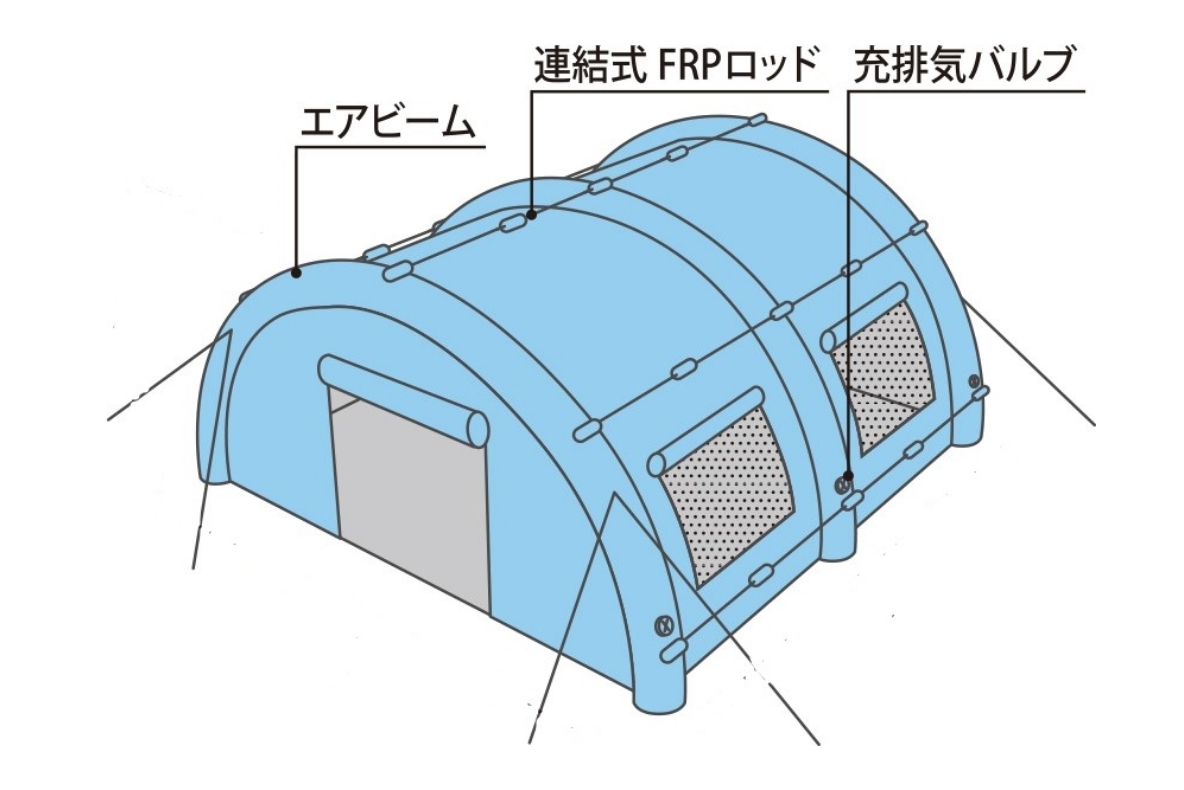

The MAK Quick Shelter is a revolutionary “hybrid air tent” consisting of multiple independent air beams (double-tubed) and orthogonal transverse joints (interlocking FRP rods).
The air beams and roofing membrane are processed as a single piece to achieve superior strength. In addition, the tent as a whole has an integrated structure thanks to the tapping effect of the “connecting FRP rods”.

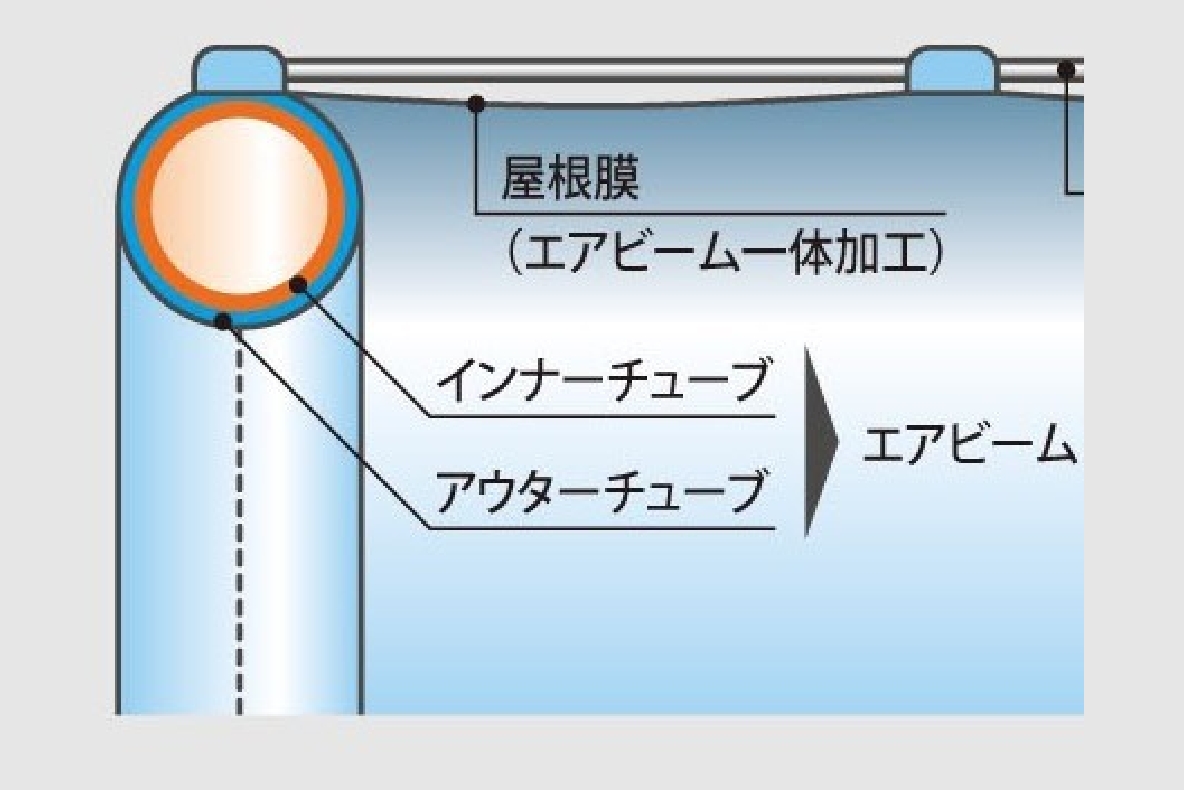

Air beams are double-tubed for peace of mind
AirBeam” has a double-layer construction with an outer tube and inner tube. The inner tube maintains a high level of confidentiality, while the outer tube prevents damage from reaching the inner tube in the event of damage. In the unlikely event that the inner tube is damaged, it can be replaced on site and restored.

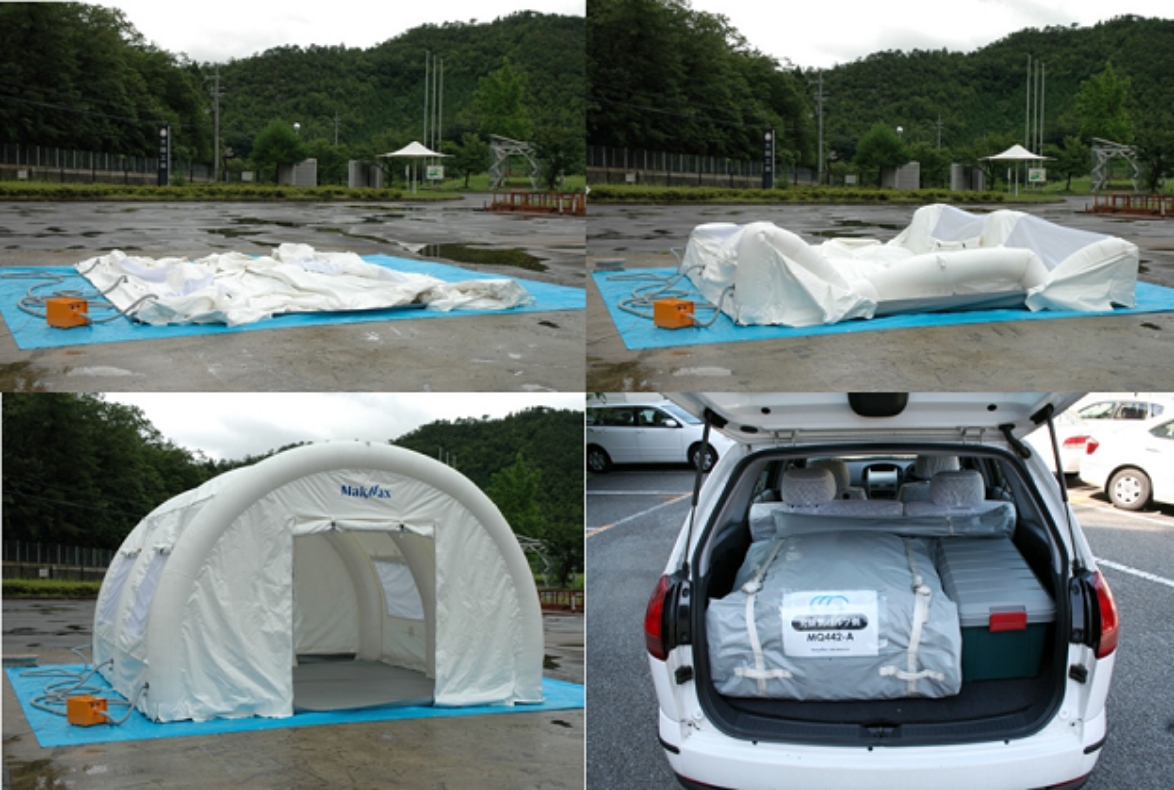

Quick start-up and compact storage
Compared to conventional products that consist of air beams both vertically and horizontally, the number and volume of air beams are smaller, so the machine starts up in a shorter time (approximately 1 minute (MQ-442)).
It is compact and lightweight (MQ-442-A), with a storage size of 80 cm x 80 cm x 50 cm and a weight of 55 kg. It can be carried by two adults and fits in the cargo space of a small light van when transported.
Lineup, Specifications
| MQ-342-A | MQ-442-A | MQ-462-A | MQ-562-A | |
|---|---|---|---|---|
| Size | W3m x L4m x H2m | W4m x L4m x H2.5m | W4m x L6m x H2.5m | W5m x L6m x H2.7m |
| Capacity | 6-8 persons | 8-10 persons | 12-16 persons | 15 to 20 people |
| Size (approximate when stored) | 80cm x 80cm x 35cm | 80cm x 80cm x 50cm | 85cm x 85cm x 50cm | 95cm x 90cm x 50cm |
| Main unit weight | Approx. 40kg | Approx. 55kg | Approx. 75kg | Approx. 95 kg |
| Air beams (number) | 3 | 3 | 3 | 3 |
| Aperture | 2 entrances and exits (gable end) Width 1.2m x Height 1.5m |
2 entrances (gable end) 1.8m wide x 1.8m high | 2 entrances and exits (gable end) Width 2.0m x Height 1.9m |
|
| Window | Ventilation window with roll-up cover x 4 places (side) 70cm x 72.5cm wide | |||
| Body | PET+PVC (flameproof grade 2) | |||
| Inner tube | Polyurethane (flame retardant grade 2) | |||
| FRP Rods | Φ15mm 5 pcs. | Φ21mm 5 pcs. | ||
| Price (excluding tax) | 1,150,000 yen | 1,280,000 yen | 1,650,000 yen | 1,750,000 yen |

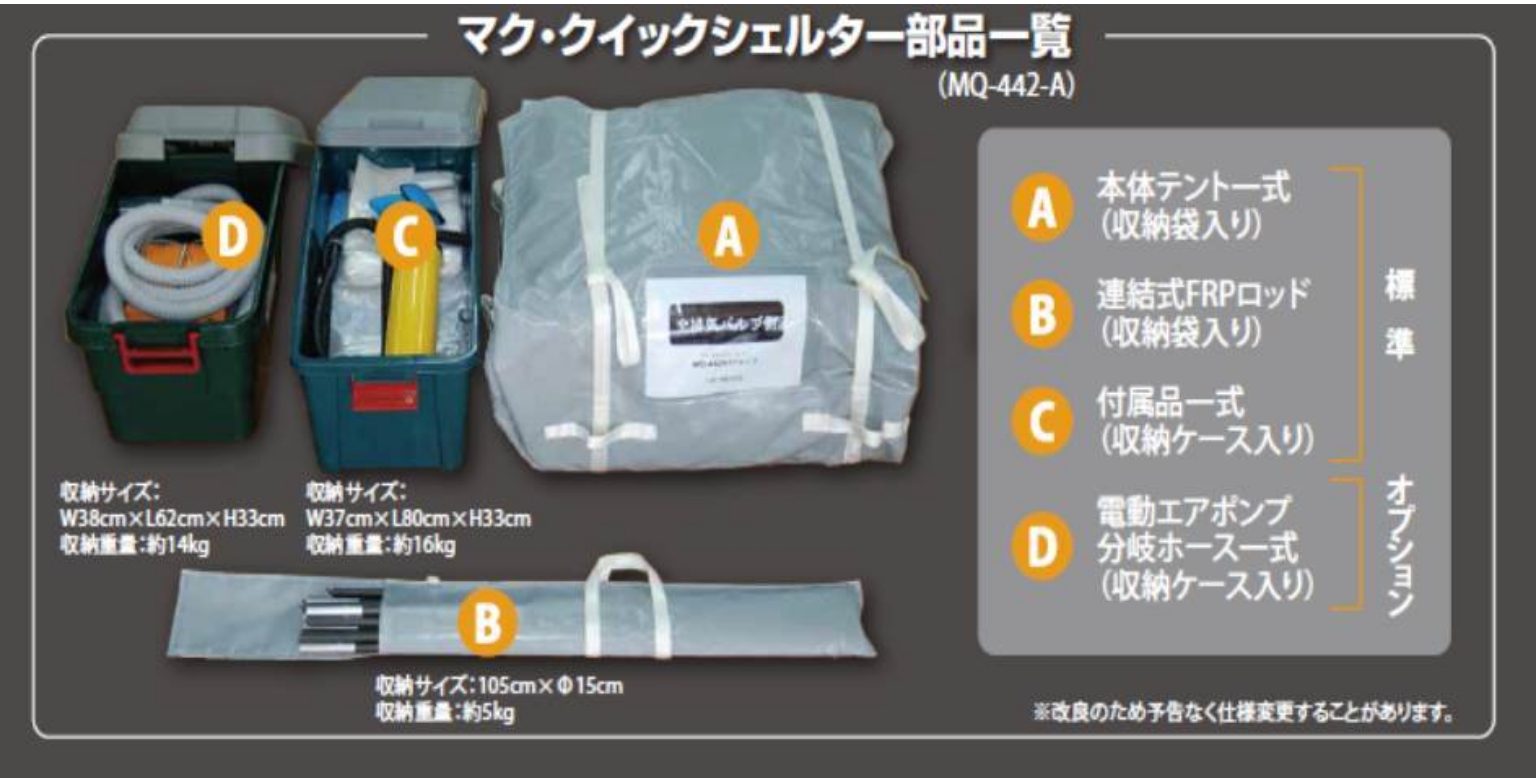

Parts List
Tent specification options

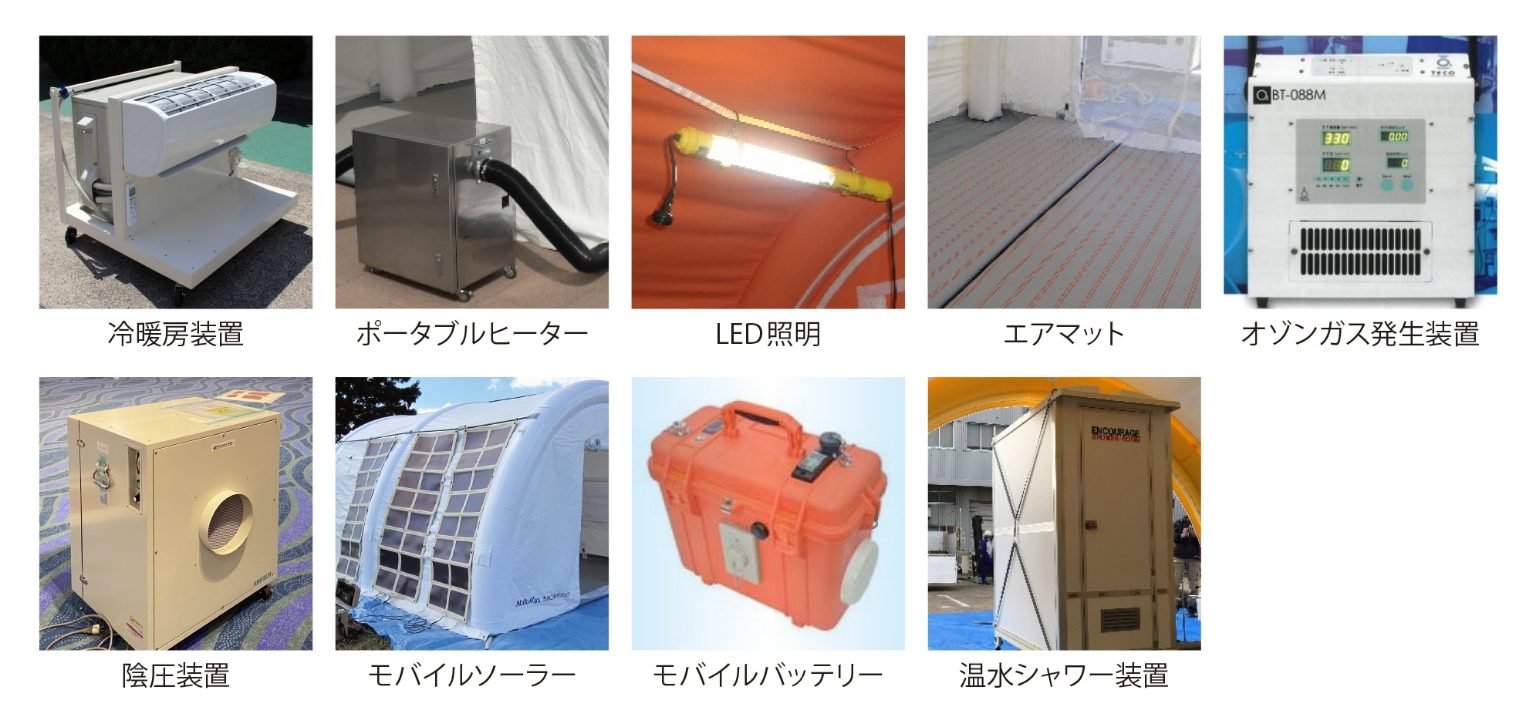

Other options
